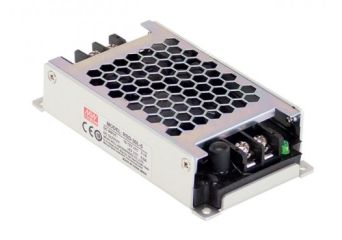

RSD-30

RSD-30 is a 30W enclosed type DC-DC reliable railway converter. This series is compliant with EN50155/IEC60571 railway standard, constituting three types of models with 4:1 wide but different input ranges 9~36V/18~72V/40~160V, suitable for railway and all kinds of transportation systems exploiting the frequently used standard input voltages such as 12V, 24V, 36V, 48V, 72V, 96V and 110V. Various output voltages, 3.3V,5V,12V and 24V are available for selection.

This series has the capability of working under -40~+70°C, low ripple and noise, supreme EMC characteristics, 4KVDC I/P-OP, low enclosure profile 25mm and an interior with semi-potted silicone. It does not only well fits the in-car systems or the facilities by rails for railway, trams and buses but also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.

Available models:

• 3.3V: RSD-30G-3.3, RSD-30L-3.3, RSD-30H-3.3
• 5V: RSD-30G-5, RSD-30L-5, RSD-30H-5
• 12V: RSD-30G-12, RSD-30L-12, RSD-30H-12
• 24V: RSD-30G-24, RSD-30L-24, RSD-30H-24
