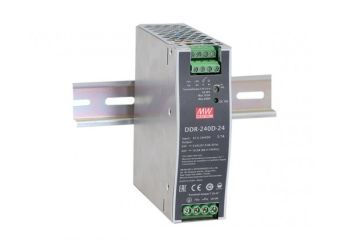

DDR-240
DIN rail type DC/DC converter: DDR-240B-24, DDR-240B-48, DDR-240C-24, DDR-240C-48, DDR-240D-24, DDR-240D-48
- Compliance to EN50155 and EN45545-2 railway standard
- Width only 40mm
- 2:1 wide input range
- -40~+70°C wide working temperature
- 150% peak load capability
- Current sharing up to 960W(3+1)
- DC output adjustable
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity/ Input under voltage protection
- 4KVdc I/O isolation(Reinforced isolation)
- DC OK relay contact
- Remote ON-OFF control
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
DDR-240
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-240B-24DC/DC converter 240W 16.8~33.6V-24V 10AIn stockWarranty: 90,80 €111,68 €Login to check your price DDR-240B-24DC/DC converter 240W 16.8~33.6V-24V 10AAvailability:In stockNet price:90,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-240B-48DC/DC converter 240W 16.8~33.6V-48V 5AIn stockWarranty: 90,80 €111,68 €Login to check your price DDR-240B-48DC/DC converter 240W 16.8~33.6V-48V 5AAvailability:In stockNet price:90,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-240C-24DC/DC converter 240W 33.6~67.2V-24V 10AIn stockWarranty: 90,80 €111,68 €Login to check your price DDR-240C-24DC/DC converter 240W 33.6~67.2V-24V 10AAvailability:In stockNet price:90,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-240C-48DC/DC converter 240W 33.6~67.2V-48V 5AIn stockWarranty: 90,80 €111,68 €Login to check your price DDR-240C-48DC/DC converter 240W 33.6~67.2V-48V 5AAvailability:In stockNet price:90,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-240D-24DC/DC converter 240W 67.2~154V-24V 10AIn stockWarranty: 90,80 €111,68 €Login to check your price DDR-240D-24DC/DC converter 240W 67.2~154V-24V 10AAvailability:In stockNet price:90,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-240D-48DC/DC converter 240W 67.2~154V-48V 5AIn stockWarranty: 90,80 €111,68 €Login to check your price DDR-240D-48DC/DC converter 240W 67.2~154V-48V 5AAvailability:In stockNet price:90,80 €
Description
DDR-240 series is a 240W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (40mm), 2:1 wide input voltage, fanless design, -40~+70°C wide operating temperature, 4KVdc l/O isolation, 150% peak load, current sharing, DC OK, adjustable output voltage and full protective functions. This series of models has various input options: 16.8~33.6V / 33.6~67.2V / 67.2~154V and two output options: 24V / 48V and can be used for industrial & railway control, security control, communication system and other fields. Suitable applications include to DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.
Available models:
- 24V: DDR-240B-24, DDR-240C-24, DDR-240D-24
- 48V: DDR-240B-48, DDR-240C-48, DDR-240D-48
Technical Specification
DDR-240: 240W DETAILS
| Model | Input | Output | Ripple & noise | Efficiency | Dimension |
| DDR-240B-24 | 16.8~33.6V | 24V, 0~10A | 80mV | 90% | 40x125.2x113.5mm |
| DDR-240B-48 | 16.8~33.6V | 48V, 0~5A | 100mV | 90% | 40x125.2x113.5mm |
| DDR-240C-24 | 33.6~67.2V | 24V, 0~10A | 80mV | 91% | 40x125.2x113.5mm |
| DDR-240C-48 | 33.6~67.2V | 48V, 0~5A | 100mV | 92% | 40x125.2x113.5mm |
| DDR-240D-24 | 67.2~154V | 24V, 0~10A | 80mV | 95% | 40x125.2x113.5mm |
| DDR-240D-48 | 67.2~154V | 48V, 0~5A | 100mV | 92.5% | 40x125.2x113.5mm |
