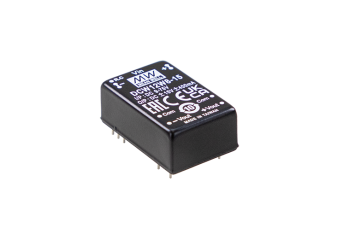

DCW12W8
12W double output DC/DC converter
- DIP24 package with industry standard pinout
- 8:1 (9-75 VDC) ultra-wide input range
- Operating temperature range -40~+95℃
- No minimum load required
- Comply to BS EN/EN55032 radiated Class A without additional components
- High efficiency up to 87%
- Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- Remote ON/OFF control (Optional)
- 3 kVDC I/O isolation
- 3 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
DCW12W8
Описание
SCW12W8 and DCW12W8 series are 12W isolated and regulated module type DC-DC converter with DIP24 package. It features international standard pins, a high efficiency up to 87%, wide working temperature range -40~+90℃, 3KVdc I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit protection, 8:1(9~75V) ultra-wide input range, and various output voltage, 3.3V, 5V, 9V, 12V, 15V for single output and ±5V, ±12V, ±15V for dual outputs, which are suitable for all kinds of systems, Such as industrial control, telecommunication field, distributed power architecture, and so on.
Техническа спецификация
DCW12W8: 12W double output DC/DC converter → Link to manufacturer documentation (specification, reports, certificates, others)
| Model | Input voltage | Input current (no load) |
Output voltage | Output current | Output ripple & noise | Efficiency | Dimension (LxWxH) |
|---|---|---|---|---|---|---|---|
| DCW12W8-05 | 9-75 VDC | 10 mA | ±5 VDC | ±1200 mA | 100 mVpp | 84% | 31.8 x 20.3 x 12.2 mm |
| DCW12W8-12 | 9-75 VDC | 10 mA | ±12 VDC | ±500 mA | 100 mVpp | 87% | 31.8 x 20.3 x 12.2 mm |
| DCW12W8-15 | 9-75 VDC | 10 mA | ±15 VDC | ±400 mA | 100 mVpp | 86% | 31.8 x 20.3 x 12.2 mm |
