- Wide input voltage range 85-264 VAC, 127-370 VDC
- Energy efficiency - level VI
- Efficiency up to 94.5%
- Active PFC No-load power consumption <<0.5 W
- Compliant with EISA 2007, EU ErP
- Protection: short circuit, overvoltage, overload, temperature
- LED operation signaling
- Working temperature -30 - 70 ° C
- Fully enclosed plastic housing, no fan
- Compliance with many standards and certificates
- 3-year warranty
Cables for power supplies are available at the bottom of the page under the "Accessories and additions" tab
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-

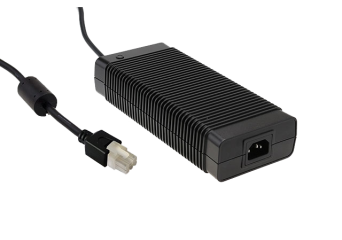

Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST360A12-C8Pdesktop power supply 360W 12V 27.5AIn delivery Warranty: 92,50 €113,78 €Login to check your price GST360A12-C8Pdesktop power supply 360W 12V 27.5AAvailability: In deliveryNet price:92,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST360A24-C6Pdesktop power supply 360W 24V 15AOut of stock Warranty: 92,50 €113,78 €Login to check your price GST360A24-C6Pdesktop power supply 360W 24V 15AAvailability: Out of stockNet price:92,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST360A36-C6Pdesktop power supply 360W 36V 10AOut of stock Warranty: 92,50 €113,78 €Login to check your price GST360A36-C6Pdesktop power supply 360W 36V 10AAvailability: Out of stockNet price:92,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST360A48-C6Pdesktop power supply 360W 48V 7.5AOut of stock Warranty: 92,50 €113,78 €Login to check your price GST360A48-C6Pdesktop power supply 360W 48V 7.5AAvailability: Out of stockNet price:92,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST360A55-C6Pdesktop power supply 360W 55V 6.55AOut of stock Warranty: 92,50 €113,78 €Login to check your price GST360A55-C6Pdesktop power supply 360W 55V 6.55AAvailability: Out of stockNet price:92,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST360A15-C8Pdesktop power supply 360W 15V 22.7AOut of stock Warranty: 92,50 €113,78 €Login to check your price GST360A15-C8Pdesktop power supply 360W 15V 22.7AAvailability: Out of stockNet price:92,50 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2-pin EU plug with FG + IEC320-C13 INLETIn stockWarranty: 4,10 €5,04 €Login to check your price 2-pin EU plug with FG + IEC320-C13 INLETAvailability:In stockNet price:4,10 €
Description
GST is a highly reliable, 90W desktop style single-output green adaptor series. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With the extremely low no-load power consumption, GST is compliant with USA EISA 2007/D0E, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (COC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. GST is certified for the international safety regulations.
Available models:
- 12V: GST160A12-P1J, GST220A12-P1J, GST280A12-P1J
- 15V: GST160A15-P1J, GST220A15-P1J, GST280A15-P1J
- 20V: GST160A20-P1J, GST220A20-P1J, GST280A20-P1J
- 24V: GST160A24-P1J, GST220A24-P1J, GST280A24-P1J
- 48V: GST160A48-P1J, GST220A48-P1J, GST280A48-P1J
Technical Specification
-
GST280A:252~280W DETAILS
Model Output Tolerance Ripple & noise Efficiency Plug Dimension GST280A12-P1J 12V, 0~21A +/-5% 120mV 90% 6P/4.2MM 220x95x46mm GST280A15-P1J 15V, 0~17A +/-5% 120mV 90% 6P/4.2MM 220x95x46mm GST280A20-P1J 20V, 0~13A +/-4% 150mV 92% 6P/4.2MM 220x95x46mm GST280A24-P1J 24V, 0~11.67A +/-3% 180mV 93% 6P/4.2MM 220x95x46mm GST280A48-P1J 48V, 0~5.84A +/-2% 240mV 94% 6P/4.2MM 220x95x46mm
