P1J DC adapters
Цена от 0,50 € без данък
При поръчка до 15:00 ч., пратката ще бъде изпратена същия ден In stock
Производител: MEAN WELL
- Wide input voltage range 90-264 VAC, 127-370 VDC
- Energy efficiency - level VI
- No-load power consumption <0.075 W
- Compliant with EISA 2007, EU ErP
- Protections: short circuit, overvoltage and overload protection
- Temperature protection
- 1st class of protection
- AC input: IEC320-C14
- LED operation signaling
- Working temperature -30 - 70 ° C
- Fully enclosed plastic housing
- Compliance with many standards and certificates
- 3-year warranty
Cables for power supplies are available at the bottom of the page under the "Accessories and additions" tab
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 16,80 € без данък
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST60A05-P1Jdesktop power supply 30W 5V 6AIn stockWarranty: 16,80 €20,66 €Login to check your price GST60A05-P1Jdesktop power supply 30W 5V 6AAvailability:In stockNet price:16,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST60A07-P1Jdesktop power supply 45W 7.5V 6AIn stockWarranty: 16,80 €20,66 €Login to check your price GST60A07-P1Jdesktop power supply 45W 7.5V 6AAvailability:In stockNet price:16,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST60A09-P1Jdesktop power supply 60W 9V 6AOut of stock Warranty: 16,80 €20,66 €Login to check your price GST60A09-P1Jdesktop power supply 60W 9V 6AAvailability: Out of stockNet price:16,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST60A12-P1Jdesktop power supply 60W 12V 5AIn delivery Warranty: 16,80 €20,66 €Login to check your price GST60A12-P1Jdesktop power supply 60W 12V 5AAvailability: In deliveryNet price:16,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST60A15-P1Jdesktop power supply 60W 15V 4AIn stockWarranty: 16,80 €20,66 €Login to check your price GST60A15-P1Jdesktop power supply 60W 15V 4AAvailability:In stockNet price:16,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST60A18-P1Jdesktop power supply 60W 18V 3.33AIn stockWarranty: 16,80 €20,66 €Login to check your price GST60A18-P1Jdesktop power supply 60W 18V 3.33AAvailability:In stockNet price:16,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST60A24-P1Jdesktop power supply 60W 24V 2.5AIn stockWarranty: 16,80 €20,66 €Login to check your price GST60A24-P1Jdesktop power supply 60W 24V 2.5AAvailability:In stockNet price:16,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST60A48-P1Jdesktop power supply 60W 48V 1.25AIn stockWarranty: 16,80 €20,66 €Login to check your price GST60A48-P1Jdesktop power supply 60W 48V 1.25AAvailability:In stockNet price:16,80 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2-pin EU plug with FG + IEC320-C13 INLETIn stockWarranty: 4,10 €5,04 €Login to check your price 2-pin EU plug with FG + IEC320-C13 INLETAvailability:In stockNet price:4,10 €
Useful products
Description

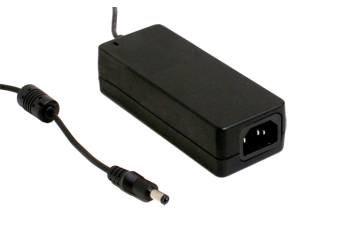

GST is a highly reliable, 90W desktop style single-output green adaptor series. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With extremely low no-load power consumption, GST is compliant with USA EISA 2007/D0E, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (COC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. GST is certified for the international safety regulations.
Available models:
- 5V: GST40A05-P1J, GST60A05-P1J
- 7.5V: GST40A07-P1J, GST60A07-P1J
- 9V: GST40A09-P1J, GST60A09-P1J
- 12V: GST40A12-P1J, GST60A12-P1J, GST90A12-P1J, GST120A12-P1J
- 15V: GST40A15-P1J, GST60A15-P1J, GST90A15-P1J, GST120A15-P1J
- 18V: GST40A18-P1J, GST60A18-P1J
- 19V: GST90A19-P1J
- 20V: GST120A20-P1J
- 24V: GST40A24-P1J, GST60A24-P1J, GST90A24-P1J, GST120A24-P1J
- 48V: GST40A48-P1J, GST60A48-P1J, GST90A48-P1J, GST120A48-P1J
Technical Specification
-
GST60A: 30~60W DETAILS
Model Output Tolerance Ripple & noise Efficiency Plug Dimension GST60A05-P1J 5V, 0~6A +/-5% 150mV 85.5% 2.1Øx5.5Øx11mm 125x50x31.5mm GST60A07-P1J 7.5V, 0~6A +/-5% 150mV 88.5% 2.1Øx5.5Øx11mm 125x50x31.5mm GST60A09-P1J 9V, 0~6A +/-5% 150mV 89% 2.1Øx5.5Øx11mm 125x50x31.5mm GST60A12-P1J 12V, 0~5A +/-3% 150mV 89.5% 2.1Øx5.5Øx11mm 125x50x31.5mm GST60A15-P1J 15V, 0~4A +/-3% 100mV 89.5% 2.1Øx5.5Øx11mm 125x50x31.5mm GST60A18-P1J 18V, 0~3.33A +/-3% 150mV 89.5% 2.1Øx5.5Øx11mm 125x50x31.5mm GST60A24-P1J 24V, 0~2.5A +/-2.5% 180mV 90.5% 2.1Øx5.5Øx11mm 125x50x31.5mm GST60A48-P1J 48V, 0~1.25A +/-2.5% 240mV 92% 2.1Øx5.5Øx11mm 125x50x31.5mm
