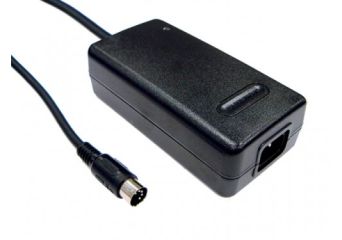

GP50
Desktop type 3 outputs power supply: GP50A13A-R1B, GP50A13D-R1B, GP50A14E-R1B
- Universal AC input / Full range
- 3 pole AC inlet lEC320-C14, Class I power unit
- No load power consumption <0.3W
- Energy efficiency level VI
- Comply with EISA 2007/DoE
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- -20~+70°C working temperature
- LED indicator for power on
High price? Log in and buy cheaper
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGP50A13A-R1Bdesktop power supply 50W 5V, 12V,-5VOut of stock Warranty: 45,60 €56,09 €Login to check your price GP50A13A-R1Bdesktop power supply 50W 5V, 12V,-5VAvailability: Out of stockNet price:45,60 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGP50A13D-R1Bdesktop power supply 50W 5V, 12V,-12VOut of stock Warranty: 45,60 €56,09 €Login to check your price GP50A13D-R1Bdesktop power supply 50W 5V, 12V,-12VAvailability: Out of stockNet price:45,60 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGP50A14E-R1Bdesktop power supply 50W 5V, 15V,-15VOut of stock Warranty: 45,60 €56,09 €Login to check your price GP50A14E-R1Bdesktop power supply 50W 5V, 15V,-15VAvailability: Out of stockNet price:45,60 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2-pin EU plug with FG + IEC320-C13 INLETIn stockWarranty: 4,10 €5,04 €Login to check your price 2-pin EU plug with FG + IEC320-C13 INLETAvailability:In stockNet price:4,10 €
Description
GP50A is a 50W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level VI). Adopting Class I design and utilizing the standard inlet lEC320-C14, it is designed with FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. This series operates from 90~264VAC and offers three models with the output voltage sets +5V/+12V/-5V, +5V/+12V/-12V, +5V/+15V/-15V and can option +16V/+48V/-16V.
Its supreme advantages includes the less-than-0.3W no load power consumption, the capability of working under -20~+70°C ambient temperature, complete protection functions and three-year warranty and the compliance to the international safety certification such as CB, TUV, UL, CE and FCC. GP50A is a multiple-output green adaptor with high safety, high reliability and high quality.
Available models:
- +5V/+12V/-5V: GP50A13A-R1B
- +5V/+12V/-12V: GP50A13D-R1B
- +5V/+15V/-15V: GP50A14E-R1B
Technical Specification
GP50A: 25W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Plug | Dimension |
| GP50A13D-R1B | 5V, 0.5~4A 12V, 0.5~2A -12V, 0.1~0.5A |
+/-6% +/-10% +/-12% |
50mV 100mV 100mV |
72% | 50W | R1B DIN 5P | 147x76x43mm |
| GP50A14E-R1B | 5V, 0.5~4A 15V, 0.1~1.5A -15V, 0.1~0.5A |
+/-6% +/-10% +/-12% |
50mV 100mV 100mV |
74% | 50W | R1B DIN 5P | 147x76x43mm |
