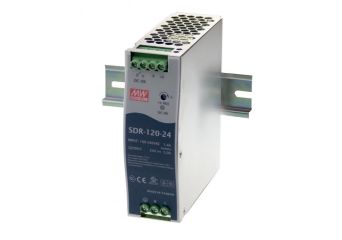

SDR-120
High efficiency DIN rail power supply: SDR-120-24, SDR-120-12, SDR-120-48
Производител: MEAN WELL
Производител: MEAN WELL
- High efficiency 91% and low power dissipation
- 150% peak load capability
- Built-in active PFC function, PF>0.93
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- 100% full load burn-in test
Цена от 50,60 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
SDR-120
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDR-120-24DIN rail power supply 120W 24V 5AIn stockWarranty: 50,60 €62,24 €Login to check your price SDR-120-24DIN rail power supply 120W 24V 5AAvailability:In stockNet price:50,60 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDR-120-12DIN rail power supply 120W 12V 10AIn stockWarranty: 50,60 €62,24 €Login to check your price SDR-120-12DIN rail power supply 120W 12V 10AAvailability:In stockNet price:50,60 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDR-120-48DIN rail power supply 120W 48V 2.5AIn stockWarranty: 50,60 €62,24 €Login to check your price SDR-120-48DIN rail power supply 120W 48V 2.5AAvailability:In stockNet price:50,60 €
Description
- High efficiency 91% and low power dissipation
- 150% peak load capability
- Built-in active PFC function, PF>0.93
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- 100% full load burn-in test
Available models:
- 12V: SDR-120-12
- 24V: SDR-120-24
- 48V: SDR-120-48
Technical Specification
SDR-120: 120W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| SDR-120-12 | 12V, 0~10A | +/-1% | 100mV | 89% | 40x125.2x113.5mm |
| SDR-120-24 | 24V, 0~5A | +/-1% | 100mV | 91% | 40x125.2x113.5mm |
| SDR-120-48 | 48V, 0~2.5A | +/-1% | 120mV | 90% | 40x125.2x113.5mm |
