Производител: MEAN WELL
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active PFC function, PF>0.94
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- 100% full load burn-in test
Цена от 136,20 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба

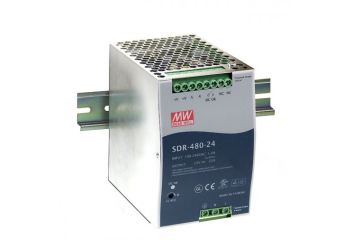

SDR-480
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDR-480-24DIN rail power supply 480W 24V 20AIn stockWarranty: 136,20 €167,53 €Login to check your price SDR-480-24DIN rail power supply 480W 24V 20AAvailability:In stockNet price:136,20 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDR-480-48DIN rail power supply 480W 48V 10AIn stockWarranty: 136,20 €167,53 €Login to check your price SDR-480-48DIN rail power supply 480W 48V 10AAvailability:In stockNet price:136,20 €
Description
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active PFC function, PF>0.94
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- 100% full load burn-in test
Available models:
- 24V: SDR-480-24
- 48V: SDR-480-48
Technical Specification
SDR-480: 480W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| SDR-480-24 | 24V, 0~20A | +/-1% | 100mV | 94% | 85.5x125.2x128.5mm |
| SDR-480-48 | 48V, 0~10A | +/-1% | 120mV | 94% | 85.5x125.2x128.5mm |
