SDR-75

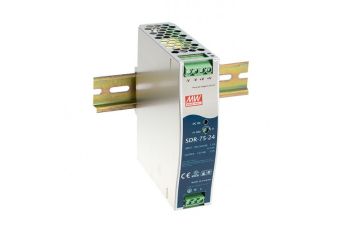

High efficiency DIN rail power supply: SDR-75-12, SDR-75-24, SDR-75-48
Производител: MEAN WELL
Производител: MEAN WELL
- High efficiency 90% and low power dissipation
- 150% peak load capability
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
Цена от 31,40 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDR-75-12DIN rail power supply 75W 12V 6.3AIn stockWarranty: 31,40 €38,62 €Login to check your price SDR-75-12DIN rail power supply 75W 12V 6.3AAvailability:In stockNet price:31,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDR-75-24DIN rail power supply 75W 24V 3.2AIn stockWarranty: 31,40 €38,62 €Login to check your price SDR-75-24DIN rail power supply 75W 24V 3.2AAvailability:In stockNet price:31,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDR-75-48DIN rail power supply 75W 48V 1.6AIn stockWarranty: 31,40 €38,62 €Login to check your price SDR-75-48DIN rail power supply 75W 48V 1.6AAvailability:In stockNet price:31,40 €
Description
- High efficiency 90% and low power dissipation
- 150% peak load capability
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
Available models:
- 12V: SDR-75-12
- 24V: SDR-75-24
- 48V: SDR-75-48
Technical Specification
SDR-75: 75W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| SDR-75-12 | 12V, 0~6.3A | +/-1% | 100mV | 88.5% | 32x125.2x102mm |
| SDR-75-24 | 24V, 0~3.2A | +/-1% | 100mV | 89% | 32x125.2x102mm |
| SDR-75-48 | 48V, 0~1.6A | +/-1% | 120mV | 90% | 32x125.2x102mm |
