Производител: MEAN WELL
- AC input 180~264VAC only
- 130% peak load capability
- 110mm slim design
- Built-in active PFC function compliance to EN61000-3-2
- High efficiency 94% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Current sharing up to 3840W(3+1)
- Built-in DC OK relay contact
- 100% full load burn-in test
Цена от 243,40 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба

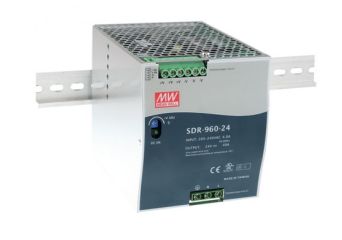

SDR-960
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDR-960-24DIN rail power supply 960W 24V 40AIn stockWarranty: 243,40 €299,38 €Login to check your price SDR-960-24DIN rail power supply 960W 24V 40AAvailability:In stockNet price:243,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDR-960-48DIN rail power supply 960W 48V 20AIn stockWarranty: 243,40 €299,38 €Login to check your price SDR-960-48DIN rail power supply 960W 48V 20AAvailability:In stockNet price:243,40 €
Description
- AC input 180~264VAC only
- 130% peak load capability
- 110mm slim design
- Built-in active PFC function compliance to EN61000-3-2
- High efficiency 94% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Current sharing up to 3840W(3+1)
- Built-in DC OK relay contact
- 100% full load burn-in test
Available models:
- 24V: SDR-960-24
- 48V: SDR-960-48
Technical Specification
SDR-960: 960W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| SDR-960-24 | 24V, 0~40A | +/-1% | 180mV | 94% | 110x125.2x150mm |
| SDR-960-48 | 48V, 0~20A | +/-1% | 250mV | 94% | 110x125.2x150mm |
