NOTE: DR-120 series is phased-out by the manufacturer and are available while stock lasts. As a replacement we suggest NDR-120 or HDR-120 series. |
Производител: MEAN WELL
- AC input range selectable by switch
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- LED indicator for power on
- Fixed switching frequency at 55KHz
- 100% full load burn-in test
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Description
- AC input range selectable by switch
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- LED indicator for power on
- Fixed switching frequency at 55KHz
- 100% full load burn-in test
Available models:
- 12V: DR-120-12

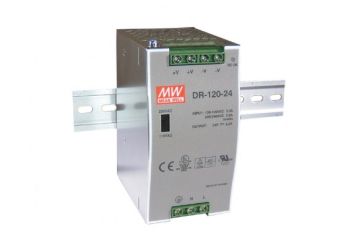

- 24V: DR-120-24
- 48V: DR-120-48
Technical Specification
DR-120: 120W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| DR-120-12 | 12V, 0~10A | +/-2% | 80mV | 80% | 65.5x125.2x100mm |
| DR-120-24 | 24V, 0~5A | +/-1% | 80mV | 84% | 65.5x125.2x100mm |
| DR-120-48 | 48V, 0~2.5A | +/-1% | 100mV | 85% | 65.5x125.2x100mm |
