NOTE: DR-30 series is phased-out by the manufacturer and are available while stock lasts. As a replacement we suggest HDR-30 series. |
DR-30

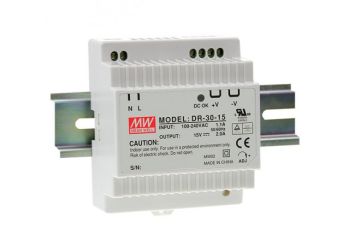

Industrial DIN rail power supply: DR-30-12, DR-30-5, DR-30-15, DR-30-24
Производител: MEAN WELL
Производител: MEAN WELL
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Isolation class II
- LED indicator for power on
- 100% full load burn-in test
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Description
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Isolation class II
- LED indicator for power on
- 100% full load burn-in test
Available models:
- 5V: DR-30-5
- 12V: DR-30-12
- 15V: DR-30-15
- 24V: DR-30-24
Technical Specification
DR-30: 5-36W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| DR-30-5 | 5V, 0~3.0A | +/-2% | 80mV | 74% | 78x93x56mm |
| DR-30-12 | 12V, 0~2.0A | +/-1% | 120mV | 81% | 78x93x56mm |
| DR-30-15 | 15V, 0~2.0A | +/-1% | 120mV | 82% | 78x93x56mm |
| DR-30-24 | 24V, 0~1.5A | +/-1% | 150mV | 83% | 78x93x56mm |
