NOTE: DR-45 series is phased-out by the manufacturer and are available while stock lasts. As a replacement we suggest HDR series. |
Производител: MEAN WELL
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- LED indicator for power on
- Fixed switching frequency at 100KHz
- 100% full load burn-in test
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Description
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- LED indicator for power on
- Fixed switching frequency at 100KHz
- 100% full load burn-in test
Available models:
- 5V: DR-4505
- 12V: DR-4512
- 15V: DR-4515

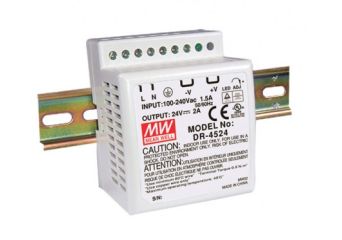

- 24V: DR-4524
Technical Specification
DR-45: 25-42W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| DR-4505 | 5V, 0~5A | +/-2% | 100mV | 72% | 78x93x67mm |
| DR-4512 | 12V, 0~3.5A | +/-1% | 200mV | 77% | 78x93x67mm |
| DR-4515 | 15V, 0~2.8A | +/-1% | 240mV | 77% | 78x93x67mm |
| DR-4524 | 24V, 0~2A | +/-1% | 480mV | 80% | 78x93x67mm |
