NOTE: DR-60 series is phased-out by the manufacturer and are available while stock lasts. As a replacement we suggest HDR-60 series |
DR-60

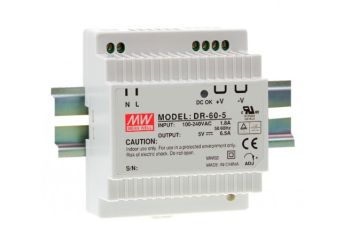

Industrial DIN rail power supply: DR-60-5, DR-60-12, DR-60-15, DR-60-24
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- LED indicator for power on
- Isolation class II
- 100% full load burn-in test
Цена от €25.90 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Наличен на склад
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиDR-60-5DIN rail power supply 30W 5V 6.5AНаличен на складГаранционен срок: €25.90€31.86Влезте, за да проверите цената си DR-60-5DIN rail power supply 30W 5V 6.5AНаличност:Наличен на складНетна цена:€25.90
Описание
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- LED indicator for power on
- Isolation class II
- 100% full load burn-in test
Available models:
- 5V: DR-60-5
- 12V: DR-60-12
- 15V: DR-60-15
- 24V: DR-60-24
Техническа спецификация
DR-60: 32.5-60W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| DR-60-5 | 5V, 0~6.5A | +/-2% | 80mV | 76% | 78x93x56mm |
| DR-60-12 | 12V, 0~4.5A | +/-1% | 120mV | 82% | 78x93x56mm |
| DR-60-15 | 15V, 0~4.0A | +/-1% | 120mV | 83% | 78x93x56mm |
| DR-60-24 | 24V, 0~2.5A | +/-1% | 150mV | 84% | 78x93x56mm |
