NOTE: DR-75 series is phased-out by the manufacturer and are available while stock lasts. As a replacement we suggest NDR-75 or HDR-75 series. |

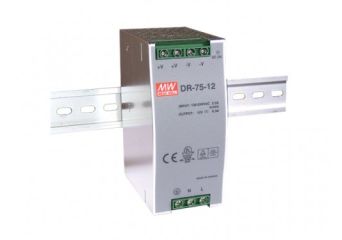

Производител: MEAN WELL
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- LED indicator for power on
- Fixed switching frequency at 50KHz
- 100% full load burn-in test
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Description
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- LED indicator for power on
- Fixed switching frequency at 50KHz
- 100% full load burn-in test
Available models:
- 12V: DR-75-12
- 15V: DR-75-24
- 24V: DR-75-48
Technical Specification
DR-75: 76-77W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| DR-75-12 | 12V, 0~6.3A | +/-2% | 100mV | 76% | 55.5x125.2x100mm |
| DR-75-24 | 24V, 0~3.2A | +/-1% | 150mV | 80% | 55.5x125.2x100mm |
| DR-75-48 | 48V, 0~1.6A | +/-1% | 240mV | 81% | 55.5x125.2x100mm |
