NOTE: DRP-240 series is phased-out by the manufacturer and are available while stock lasts. As a replacement we suggest NDR-240 series. |
Производител: MEAN WELL
- Universal AC input/Full range
- Built in active PFC range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- LED indicator for power on
- Fixed switching frequency at 100KHz
- 100% full load burn-in test
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба

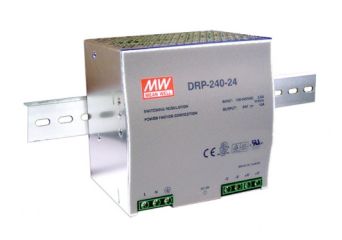

DRP-240
Description
- Universal AC input/Full range
- Built in active PFC range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- LED indicator for power on
- Fixed switching frequency at 100KHz
- 100% full load burn-in test
Available models:
- 24V: DRP-240-24
- 48V: DRP-240-48
Technical Specification
DRP-240: 240W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| DRP-240-24 | 24V, 0~10A | +/-1% | 80mV | 84% | 125.5x125.2x100mm |
| DRP-240-48 | 48V, 0~5A | +/-1% | 150mV | 85% | 125.5x125.2x100mm |
