NOTE: DRP-480 series is phased-out by the manufacturer and are available while stock lasts. As a replacement we suggest NDR-480 series. |

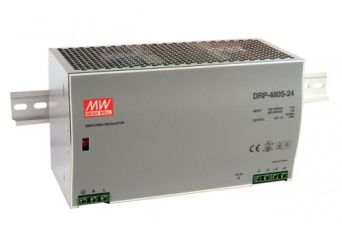

DRP-480S
Industrial DIN rail power supply: DRP-480S-24, DRP-480S-24
- AC input range selectable by switch
- Built-in passive PFC function compliance to EN61000-3-2
- High efficiency 89% and low dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
DRP-480S
Описание
- AC input range selectable by switch
- Built-in passive PFC function compliance to EN61000-3-2
- High efficiency 89% and low dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
Available models:
- 24V: DRP-480S-24
- 48V: DRP-480S-48
Техническа спецификация
DRP-480S: 480W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| DRP-480S-24 | 24V, 0~20A | +/-1% | 120mV | 89% | 227x125.2x100mm |
| DRP-480S-48 | 48V, 0~10A | +/-1% | 150mV | 89% | 227x125.2x100mm |
