NOTE: DRT-480 series is phased-out by the manufacturer and are available while stock lasts. As a replacement we suggest TDR-480 series. |

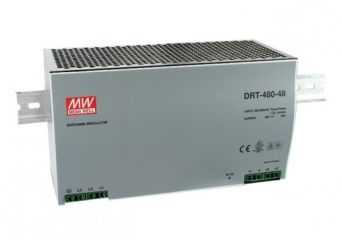

DRT-480
480W three phase industrial DIN rail power supply: DRT-480-24, DRT-480-48
Производител: MEAN WELL
Производител: MEAN WELL
- Three-Phase AC 340~550V wide range input
- High efficiency 89% and low dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употребаDRT-480
Description
- Three-Phase AC 340~550V wide range input
- High efficiency 89% and low dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
Available models:
- 24V: DRT-480-24
- 48V: DRT-480-48
Technical Specification
DRT-480: 480W DETAILS
Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
DRT-480-24 | 24V, 0~20A | +/-1% | 80mV | 89% | 227x125.2x100mm |
DRT-480-48 | 48V, 0~10A | +/-1% | 80mV | 90% | 227x125.2x100mm |
