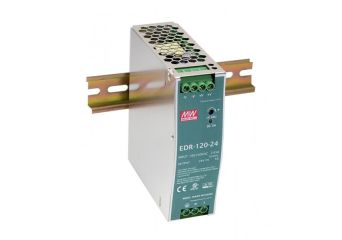

EDR-120
Industrial DIN rail power supply: EDR-120-12, EDR-120-24, EDR-120-48
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-120-12DIN rail power supply 120W 12V 10AIn stockWarranty: 24,20 €29,77 €Login to check your price EDR-120-12DIN rail power supply 120W 12V 10AAvailability:In stockNet price:24,20 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-120-24DIN rail power supply 120W 24V 5AIn stockWarranty: 24,20 €29,77 €Login to check your price EDR-120-24DIN rail power supply 120W 24V 5AAvailability:In stockNet price:24,20 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-120-48DIN rail power supply 120W 48V 2.5AIn stockWarranty: 24,20 €29,77 €Login to check your price EDR-120-48DIN rail power supply 120W 48V 2.5AAvailability:In stockNet price:24,20 €
Description
EDR-120 is one economical slim 120W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.
EDR- 120 is designed with metal housing that enhances the units power dissipation. With working efficiency up to 88.5%, the entire series can operate at the ambient temperature between -200C and 600C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN62368-1 , and etc.) make EDR-120 a very competitive power supply solution for industrial applications.
Available models:
- 12V: EDR-120-12
- 24V: EDR-120-24
- 48V: EDR-120-48
Technical Specification
EDR-120: 120W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| EDR-120-12 | 12V, 0~10A | +/-2% | 100mV | 85% | 40x125.2x113.5mm |
| EDR-120-24 | 24V, 0~5A | +/-1% | 100mV | 87.5% | 40x125.2x113.5mm |
| EDR-120-48 | 48V, 0~2.5A | +/-1% | 120mV | 88.5% | 40x125.2x113.5mm |
