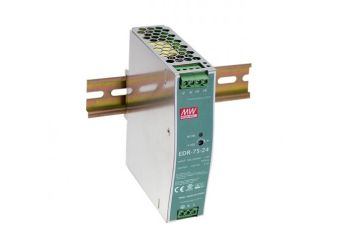

EDR-75
Industrial DIN rail power supply: EDR-75-12, EDR-75-24, EDR-75-48
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиEDR-75-12DIN rail power supply 75W 12V 6.3AНаличен на складГаранционен срок: €20.90€25.71Влезте, за да проверите цената си EDR-75-12DIN rail power supply 75W 12V 6.3AНаличност:Наличен на складНетна цена:€20.90 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиEDR-75-24DIN rail power supply 75W 24V 3.2AНаличен на складГаранционен срок: €20.90€25.71Влезте, за да проверите цената си EDR-75-24DIN rail power supply 75W 24V 3.2AНаличност:Наличен на складНетна цена:€20.90 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиEDR-75-48DIN rail power supply 75W 48V 1.6AНаличен на складГаранционен срок: €20.90€25.71Влезте, за да проверите цената си EDR-75-48DIN rail power supply 75W 48V 1.6AНаличност:Наличен на складНетна цена:€20.90
Описание
EDR-75 is one economical slim 75W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 32mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.
EDR-75 is designed with metal housing that enhances the units power dissipation. With working efficiency up to 88.5%, the entire series can operate at the ambient temperature between -200C and 600C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN62368-1 , and etc.) make EDR-75 a very competitive power supply solution for industrial applications.
Available models:
- 12V: EDR-75-12
- 24V: EDR-75-24
- 48V: EDR-75-48
Техническа спецификация
EDR-75: 75W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| EDR-75-12 | 12V, 0~6.3A | +/-2% | 100mV | 85.5% | 32x125.2x102mm |
| EDR-75-24 | 24V, 0~3.2A | +/-1% | 150mV | 87.5% | 32x125.2x102mm |
| EDR-75-48 | 48V, 0~1.6A | +/-1% | 240mV | 88.5% | 32x125.2x102mm |
