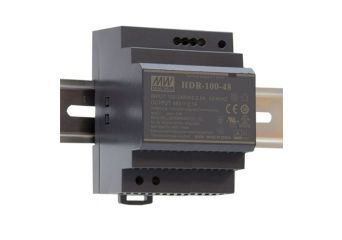

HDR-100
Industrial DIN rail power supply: HDR-100-12, HDR-100-15, HDR-100-24, HDR-100-48, HDR-100-12N, HDR-100-15N, HDR-100-24N, HDR-100-48N
- Ultra slim design with 70mm (4SU) width
- Universal input 85~264VAC (277VAC operational)
- No load power consumption<0.3W
- Isolation class Ⅱ
- Pass LPS (Limited power source) for Blank type
- DC output voltage adjustable
- Protections : Short circuit / Overload / Over voltage
- Cooling by free air convection (working temperature:-30~+70°C)
- DIN rail TS-35/7.5 or 15 mountable
- Over voltage category Ⅲ
- LED indicator for power on
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
HDR-100
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-100-12DIN rail power supply 85W 12V 7.1AIn stockWarranty: 26,00 €31,98 €Login to check your price HDR-100-12DIN rail power supply 85W 12V 7.1AAvailability:In stockNet price:26,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-100-15DIN rail power supply 92W 15V 6.13AIn stockWarranty: 26,00 €31,98 €Login to check your price HDR-100-15DIN rail power supply 92W 15V 6.13AAvailability:In stockNet price:26,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-100-24DIN rail power supply 92W 24V 3.83AIn stockWarranty: 26,00 €31,98 €Login to check your price HDR-100-24DIN rail power supply 92W 24V 3.83AAvailability:In stockNet price:26,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-100-48DIN rail power supply 92W 48V 1.92AIn delivery Warranty: 26,00 €31,98 €Login to check your price HDR-100-48DIN rail power supply 92W 48V 1.92AAvailability: In deliveryNet price:26,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-100-12NDIN rail power supply 90W 12V 7.5AIn stockWarranty: 26,00 €31,98 €Login to check your price HDR-100-12NDIN rail power supply 90W 12V 7.5AAvailability:In stockNet price:26,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-100-15NDIN rail power supply 97W 15V 6.5AIn stockWarranty: 26,00 €31,98 €Login to check your price HDR-100-15NDIN rail power supply 97W 15V 6.5AAvailability:In stockNet price:26,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-100-24NDIN rail power supply 100W 24V 4.2AIn stockWarranty: 26,00 €31,98 €Login to check your price HDR-100-24NDIN rail power supply 100W 24V 4.2AAvailability:In stockNet price:26,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-100-48NDIN rail power supply 100W 48V 2.1AIn stockWarranty: 26,00 €31,98 €Login to check your price HDR-100-48NDIN rail power supply 100W 48V 2.1AAvailability:In stockNet price:26,00 €
Description
HDR-100 is one economical ultra slim 100W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 70mm (4SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-100 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1,UL508, UL62368-1, EN61558-2-16) make HDR-100 a very competitive power supply solution for household and industrial applications.
Available models:
- 12V: HDR-100-12, HDR-100-12N
- 15V: HDR-100-15, HDR-100-15N
- 24V: HDR-100-24, HDR-100-24N
- 48V: HDR-100-48, HDR-100-48N
Technical Specification
- HDR-100: 87~92W details
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| HDR-100-12 | 12V, 0~7.31A | +/-2% | 120mV | 88% | 70x90x54.5mm |
| HDR-100-15 | 15V, 0~6.13A | +/-1% | 120mV | 89% | 70x90x54.5mm |
| HDR-100-24 | 24V, 0~3.83A | +/-1% | 150mV | 90% | 70x90x54.5mm |
| HDR-100-48 | 48V, 0~1.92A | +/-1% | 240mV | 91% | 70x90x54.5mm |
