HDR-30-5, HDR-30-12, HDR-30-15, HDR-30-24, HDR-30-48
Industrial DIN rail power supply: HDR-30-5, HDR-30-12, HDR-30-15, HDR-30-24, HDR-30-48
- Ultra slim design with 35mm(2SU) width
- Universal input 85~264VAC(277VAC operational)
- No load power consumption<0.3W
- lsolation class Ⅱ
- Pass LPS (Limited power source)
- DC output voltage adjustable
- Protections : Short circuit / Overload / Over voltage
- Cooling by free air convection (working temperature:-30~+70C)
- DIN rail TS-35/7.5 or 15 mountable
- Over voltage category Ⅲ
- LED indicator for power on
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
HDR-30-5, HDR-30-12, HDR-30-15, HDR-30-24, HDR-30-48
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-30-5DIN rail power supply 15W 5V 3AIn stockWarranty: 13,40 €16,48 €Login to check your price HDR-30-5DIN rail power supply 15W 5V 3AAvailability:In stockNet price:13,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-30-12DIN rail power supply 24W 12V 2AIn stockWarranty: 13,40 €16,48 €Login to check your price HDR-30-12DIN rail power supply 24W 12V 2AAvailability:In stockNet price:13,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-30-15DIN rail power supply 30W 15V 2AIn stockWarranty: 13,40 €16,48 €Login to check your price HDR-30-15DIN rail power supply 30W 15V 2AAvailability:In stockNet price:13,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-30-24DIN rail power supply 30W 24V 1.5AIn stockWarranty: 13,40 €16,48 €Login to check your price HDR-30-24DIN rail power supply 30W 24V 1.5AAvailability:In stockNet price:13,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-30-48DIN rail power supply 30W 48V 0.75AIn stockWarranty: 13,40 €16,48 €Login to check your price HDR-30-48DIN rail power supply 30W 48V 0.75AAvailability:In stockNet price:13,40 €
Description

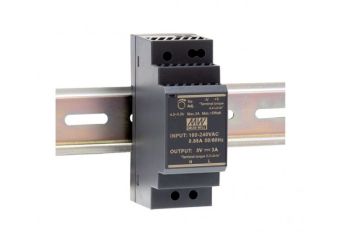

HDR-30 is one economical ultra slim 30W DlN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 35mm (2SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.
HDR-30 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -30C and 70C under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (lEC62368-1, UL508,UL62368-1, EN61558-2-16) make HDR-30 a very competitive power supply solution for household and industrial applications.
Available models:
- 5V: HDR-30-5
- 12V: HDR-30-12
- 15V: HDR-30-15
- 24V: HDR-30-24
- 48V: HDR-30-48
Technical Specification
- HDR-30: 15~24W - details
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| HDR-30-5 | 5V, 0~3.0A | +/-2% | 80mV | 82% | 35x90x54.4mm |
| HDR-30-12 | 12V, 0~2.0A | +/-1% | 120mV | 88% | 35x90x54.4mm |
| HDR-30-15 | 15V, 0~2.0A | +/-1% | 120mV | 89% | 35x90x54.4mm |
| HDR-30-24 | 24V, 0~1.5A | +/-1% | 150mV | 89% | 35x90x54.4mm |
| HDR-30-48 | 48V, 0~0.75A | +/-1% | 240mV | 90% | 35x90x54.4mm |
