MDR-40

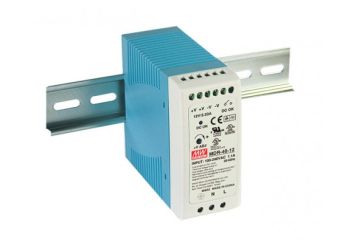

Industrial DIN rail power supply: MDR-40-12, MDR-40-5, MDR-40-48, MDR-40-24
Производител: MEAN WELL
Производител: MEAN WELL
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Class l, Div 2 Hazardous Locations T4
- LED indicator for power on
- DC OK relay contact
- No load power consumption<0.75W
- 100% full load burn-in test
Цена от 16,80 € без данък
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-40-12DIN rail power supply 40W 12V 3.33AIn stockWarranty: 16,80 €20,66 €Login to check your price MDR-40-12DIN rail power supply 40W 12V 3.33AAvailability:In stockNet price:16,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-40-5DIN rail power supply 40W 5V 6AIn stockWarranty: 16,80 €20,66 €Login to check your price MDR-40-5DIN rail power supply 40W 5V 6AAvailability:In stockNet price:16,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-40-48DIN rail power supply 40W 48V 0.83AIn stockWarranty: 16,80 €20,66 €Login to check your price MDR-40-48DIN rail power supply 40W 48V 0.83AAvailability:In stockNet price:16,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-40-24DIN rail power supply 40W 24V 1.7AIn stockWarranty: 16,80 €20,66 €Login to check your price MDR-40-24DIN rail power supply 40W 24V 1.7AAvailability:In stockNet price:16,80 €
Description
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Class l, Div 2 Hazardous Locations T4
- LED indicator for power on
- DC OK relay contact
- No load power consumption<0.75W
- 100% full load burn-in test
Available models:
- 5V: MDR-40-5
- 12V: MDR-40-12
- 24V: MDR-40-24
- 48V: MDR-40-48
Technical Specification
- MDR-40: 30-41W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| MDR-40-5 | 5V, 0~6.0A | +/-2% | 80mV | 78% | 40x90x100mm |
| MDR-40-12 | 12V, 0~3.33A | +/-1% | 120mV | 86% | 40x90x100mm |
| MDR-40-24 | 24V, 0~1.7A | +/-1% | 150mV | 88% | 40x90x100mm |
| MDR-40-48 | 48V, 0~0.83A | +/-1% | 200mV | 88% | 40x90x100mm |
