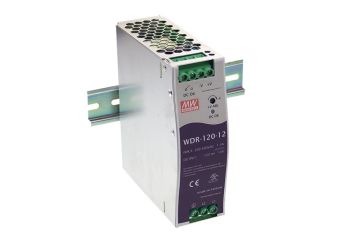

WDR-120
DIN rail power supply DIN - wide input range: WDR-120-12, WDR-120-24, WDR-120-48
Производител: MEAN WELL
Производител: MEAN WELL
- Single and two phase wide input range 180~550VAC
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
- Built-in DC OK relay contact
Цена от 56,70 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
WDR-120
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddWDR-120-12DIN rail power supply 120W 12V 10AIn stockWarranty: 56,70 €69,74 €Login to check your price WDR-120-12DIN rail power supply 120W 12V 10AAvailability:In stockNet price:56,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddWDR-120-24DIN rail power supply 120W 24V 5AIn stockWarranty: 56,70 €69,74 €Login to check your price WDR-120-24DIN rail power supply 120W 24V 5AAvailability:In stockNet price:56,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddWDR-120-48DIN rail power supply 120W 48V 2.5AIn stockWarranty: 56,70 €69,74 €Login to check your price WDR-120-48DIN rail power supply 120W 48V 2.5AAvailability:In stockNet price:56,70 €
Description
- Single and two phase wide input range 180~550VAC
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
- Built-in DC OK relay contact
Available models:
- 12V: WDR-120-12
- 24V: WDR-120-24
- 48V: WDR-120-48
Technical Specification
WDR-120: 120W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| WDR-120-12 | 12V, 0~10A | +/-1.5% | 120mV | 89.5% | 40x125.2x113.5mm |
| WDR-120-24 | 24V, 0~5A | +/-1% | 120mV | 91% | 40x125.2x113.5mm |
| WDR-120-48 | 48V, 0~2.5A | +/-1% | 150mV | 92% | 40x125.2x113.5mm |
