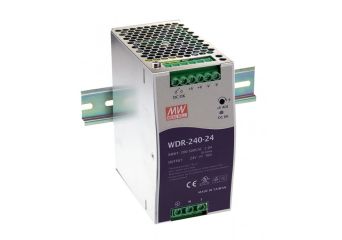

WDR-240
DIN rail power supply DIN - wide input range: WDR-240-24, WDR-240-48
Производител: MEAN WELL
Производител: MEAN WELL
- Single and two phase wide input range 180~550VAC
- Built-in active PFC circuit compliance to EN61000-3-2
- High efficiency 91% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- 100% full load burn-in test
Цена от 109,30 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddWDR-240-24DIN rail power supply 240W 24V 10AIn stockWarranty: 109,30 €134,44 €Login to check your price WDR-240-24DIN rail power supply 240W 24V 10AAvailability:In stockNet price:109,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddWDR-240-48DIN rail power supply 240W 48V 5AIn stockWarranty: 109,30 €134,44 €Login to check your price WDR-240-48DIN rail power supply 240W 48V 5AAvailability:In stockNet price:109,30 €
Description
- Single and two phase wide input range 180~550VAC
- Built-in active PFC circuit compliance to EN61000-3-2
- High efficiency 91% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- 100% full load burn-in test
Available models:
- 24V: WDR-240-24
- 48V: WDR-240-48
Technical Specification
WDR-240: 240W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| WDR-240-24 | 24V, 0~10A | +/-1% | 120mV | 90% | 63x125.2x113.5mm |
| WDR-240-48 | 48V, 0~5A | +/-1% | 120mV | 90% | 63x125.2x113.5mm |
