NOTE: DRH-120 series is phased-out by the manufacturer and are available while stock lasts. As a replacement we suggest WDR-120 series. |
Производител: MEAN WELL
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- Fix switching frequency at 70KHz
- 100% full load burn-in test
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба

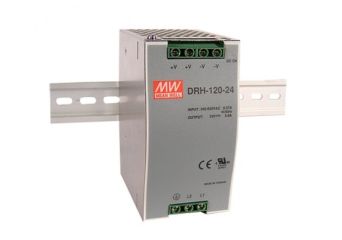

DRH-120
Description
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- Fix switching frequency at 70KHz
- 100% full load burn-in test
Available models:
- 24V: DRH-120-24
- 48V: DRH-120-48
Technical Specification
DRH-120: 120W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| DRH-120-24 | 24V, 0~5.0A | +/-1% | 80mV | 85% | 65.5x125.2x100mm |
| DRH-120-48 | 48V, 0~2.5A | +/-1% | 80mV | 86% | 65.5x125.2x100mm |
