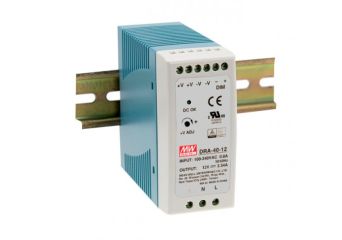

DRA-40
60W DIN rail power supply with dimming function: DRA-40-12, DRA-40-24
Производител: MEAN WELL
Производител: MEAN WELL
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Can be installed on DIN rail TS-35/7.5 or 15
- Output Voltage adjustable through internal potentiometer
- Output Current adjustable through external 1~10Vdc, PWM signal or resistance
- Cooling by free air convection
- Pass LPS
- LED indicator for power on
- 100% full load burn-in test
Цена от 21,10 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRA-40-12DIN rail power supply 40W 12V 3.34AIn stockWarranty: 21,10 €25,95 €Login to check your price DRA-40-12DIN rail power supply 40W 12V 3.34AAvailability:In stockNet price:21,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRA-40-24DIN rail power supply 40W 24V 1.7AIn stockWarranty: 21,10 €25,95 €Login to check your price DRA-40-24DIN rail power supply 40W 24V 1.7AAvailability:In stockNet price:21,10 €
Description
DRA-40 is one 40W AC/DC DIN rail power supply, featuring the adjustable output current. Users are able to easily change the constant output current level, via 1~10Vdc, PWM signal or resistance. DRA-40 can be mounted on DIN rail TS-35/7.5 or 15; in addition, the width of the unit is only 40mm that it is well suited for the installation in a limited spacing. DRA-40 accepts the universal AC input between 90VAC and 264VAC; the efficiency is up to 87% that the entire series can operate, under free air convection, from -30ºC through 70ºC .
Available models:
- 12V: DRA-40-12
- 24V: DRA-40-24
Technical Specification
DRA-40: 40W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| DRA-40-12 | 12V, 0~3.34A | +/-1% | 120mV | 85% | 40x90x100mm |
| DRA-40-24 | 24V, 0~1.7A | +/-1% | 150mV | 87% | 40x90x100mm |
