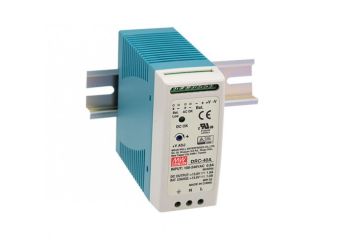

DRC-40
40W DIN rail power supply with UPS function: DRC-40A, DRC-40B
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Battery low protection / Battery reverse polarity protection by fuse
- Can be installed on DIN rail TS-35/7.5 or 15
- Alarm signal for AC OK and Battery low (via TTL open collector, optional via relay)
- Cooling by free air convection
- Pass LPS
- LED indicator for power on
- 100% full load burn-in test
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиDRC-40Apower supply 40W 13.8V 2.9A, 13.8V 1AНаличен на складГаранционен срок: €27.40€33.70Влезте, за да проверите цената си DRC-40Apower supply 40W 13.8V 2.9A, 13.8V 1AНаличност:Наличен на складНетна цена:€27.40 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиDRC-40Bpower supply 40W 27.6V 1.45A, 27.6V 0.5AНаличен на складГаранционен срок: €27.40€33.70Влезте, за да проверите цената си DRC-40Bpower supply 40W 27.6V 1.45A, 27.6V 0.5AНаличност:Наличен на складНетна цена:€27.40
Описание
DRC-40 is a 40W AC/DC DIN rail type security power supply series. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application the security access systems require. DRC-40 accepts the universal input between 90VAC and 264VAC, and supplies 13.8VDC and 27.6VDC at output, respectively. With the efficiency up to 87%, it can operate with air convection cooling under -30ºC through 70ºC. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is provided, via TTL open collector output for the standard model (via relay contact output as the optional model), to facilitate the system design.
Available models:
- 13.8V: DRC-40A
- 27.6V: DRC-40B
Техническа спецификация
DRC-40: 40W output with battery charging DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| DRC-40A | 13.8V, 0~2.9A 13.8V, 0~1A |
+/-1% (charging) |
120mV | 86% | 40W | 40x90x100mm |
| DRC-40B | 27.6V, 0~1.45A 27.6V, 0~0.5A |
+/-1% (charging) |
200mV | 87% | 40W | 40x90x100mm |
