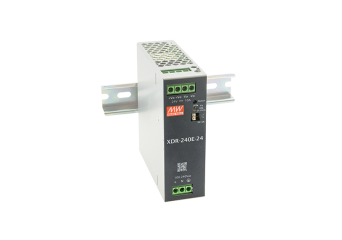

XDR-240E
Economical Ultra Slim Industrial DIN Rail Power Supply
- High efficiency up to 95.5% and no load power dissipation<1.2W
- Over voltage category III (OVC III)
- 40mm slim width
- Global certificates in multi-fields(ITE 62368-1,Industrial 61558-1/-2-16,61010)
- 85~264Vac input with PFC
- Built-in constant current limiting circuit
- Protections: Short circuit / Overload / Over voltage/ Over temperature
Fanless design, cooling by free air convection - -40~+70C wide range operation temperature (>+50℃ derating)
- Operating altitude up to 5000 meters
- Built-in DC OK relay contact
- Can be installed on DIN rail TS-35/7.5 or 15
- 3 years warranty
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
XDR-240E
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXDR-240E-12DIN rail power supply 240W 12V 20AНаличен на складГаранционен срок: €46.00€56.58Влезте, за да проверите цената си XDR-240E-12DIN rail power supply 240W 12V 20AНаличност:Наличен на складНетна цена:€46.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXDR-240E-24DIN rail power supply 240W 24V 10AПри доставка Гаранционен срок: €46.00€56.58Влезте, за да проверите цената си XDR-240E-24DIN rail power supply 240W 24V 10AНаличност: При доставкаНетна цена:€46.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXDR-240E-36DIN rail power supply 240W 36V 6.66AИзчерпан Гаранционен срок: €46.00€56.58Влезте, за да проверите цената си XDR-240E-36DIN rail power supply 240W 36V 6.66AНаличност: ИзчерпанНетна цена:€46.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXDR-240E-48DIN rail power supply 240W 48V 5AИзчерпан Гаранционен срок: €46.00€56.58Влезте, за да проверите цената си XDR-240E-48DIN rail power supply 240W 48V 5AНаличност: ИзчерпанНетна цена:€46.00
Описание
The XDR-240E series is a 240W AC/DC economical ultra slim industrial DIN rail power. Key features of this series include a narrow 40mm casing, optimizing system installation space, and an ultra-wide input
range of 85~264Vac suitable for global use. It boasts a maximum efficiency of 95.5% and a low standby power consumption <1.2W for energy savings and carbon reduction. It has built-in constant current, fanless design, a wide operating temperature range of -40 to +70 (up to +50 at full load); OVCIII compliance; built-in DC OK signal. With comprehensive protection functions, complete safety certifications, and a 3 years warranty, the XDR-240E series is a compact, high-performance, and highly reliable DIN rail power supply.
Available models:
- 12V: XDR-240E-12
- 24V: XDR-240E-24
- 36V: XDR-240E-36
- 48V: XDR-240E-48
See additional MEAN WELL XDR-E series power supplies:
Техническа спецификация
XDR-240E: 240W Economical Ultra Slim Industrial DIN Rail Power -> Manufacturer specification
| Model | Input voltage | Output parameters | Output voltage tolerance | Efficiency | Dimension (LxWxH) |
| XDR-240E-12 |
85~264VAC, 120~370VDC |
12V, 0~20A | +/-2% | 94% | 40x125.2x116mm |
| XDR-240E-24 |
85~264VAC, 120~370VDC |
24V, 0~10A | +/-1% | 95.2% | 40x125.2x116mm |
| XDR-240E-36 |
85~264VAC, 120~370VDC |
36V, 0~6.66A | +/-1% | 95.5% | 40x125.2x116mm |
| XDR-240E-48 |
85~264VAC, 120~370VDC |
48V, 0~5A | +/-1% | 95.5% | 40x125.2x116mm |
