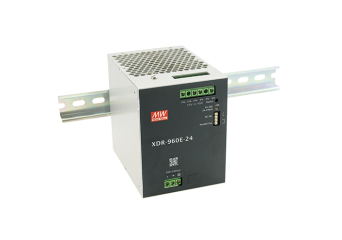

XDR-960E
Economical Ultra Slim Industrial DIN Rail Power Supply
- High efficiency up to 95.5% and no load power dissipation<3.6W
- Over voltage category III (OVC III)
- 96mm slim width
- Current sharing up to 3840W (3+1) for parallel use
- Global certificates in multi-fields(ITE 62368-1,Industrial 61558-1/-2-16,61010)
- 85~264Vac input with PFC
- Built-in constant current limiting circuit
- Protections: Short circuit / Overload / Over voltage/ Over temperature
- Fanless design, cooling by free air convection
- -40~+70C wide range operation temperature (>+50℃ derating)
- Operating altitude up to 5000 meters
- Built-in DC OK relay contact
- Can be installed on DIN rail TS-35/7.5 or 15
- 3 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Висока цена? Влезте в профила си и купете на по-ниска
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
XDR-960E
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXDR-960E-24DIN rail power supply 960W 24V 40AПри доставка Гаранционен срок: €214.00€263.22Влезте, за да проверите цената си XDR-960E-24DIN rail power supply 960W 24V 40AНаличност: При доставкаНетна цена:€214.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXDR-960E-36DIN rail power supply 960W 36V 26.6AИзчерпан Гаранционен срок: €214.00€263.22Влезте, за да проверите цената си XDR-960E-36DIN rail power supply 960W 36V 26.6AНаличност: ИзчерпанНетна цена:€214.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXDR-960E-48DIN rail power supply 960W 48V 20AИзчерпан Гаранционен срок: €214.00€263.22Влезте, за да проверите цената си XDR-960E-48DIN rail power supply 960W 48V 20AНаличност: ИзчерпанНетна цена:€214.00
Описание
The XDR-960E series is a 960W AC/DC economical ultra slim industrial DIN rail power. Key features of this series include a narrow 96mm casing, optimizing system installation space, and an ultra-wide input
range of 85~264Vac suitable for global use. It boasts a maximum efficiency of 95.5% and a low standby power consumption <3.6W for energy savings and carbon reduction. It has built-in constant current, fanless design, a wide operating temperature range of -40 to +70 (up to +50 at full load); OVCIII compliance; parallel function capability up to 3840W; built-in DC OK signal. With comprehensive protection functions, complete safety certifications, and a 3 years warranty, the XDR-480E series is a compact, high-performance, and highly reliable DIN rail power supply.
Available models:
- 24V: XDR-960E-24
- 36V: XDR-960E-36
- 48V: XDR-960E-48
See additional MEAN WELL XDR-E series power supplies:
Техническа спецификация
XDR-960E: 960W Economical Ultra Slim Industrial DIN Rail Power -> Manufacturer specification
| Model | Input voltage | Output parameters | Output voltage tolerance | Efficiency | Dimension (LxWxH) |
| XDR-960E-24 |
85~264VAC, 120~370VDC |
24V, 0~40A | +/-1% | 94.5% | 96x125.2x116mm |
| XDR-960E-36 |
85~264VAC, 120~370VDC |
36V, 0~16.6A | +/-1% | 95% | 96x125.2x116mm |
| XDR-960E-48 |
85~264VAC, 120~370VDC |
48V, 0~20A | +/-1% | 95.5% | 96x125.2x116mm |
