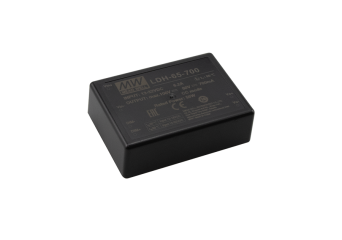

LDH-65
LED DC / DC current driver: LDH-65-700, LDH-65-1050, LDH-65-1400, LDH-65-1750
Производител: MEAN WELL
Производител: MEAN WELL
- DC driver 'step-up'
- wide input voltage range: 9.5 ~ 32VDC
- output voltage up to 80VDC
- efficiency up to 95%
- 0-10VDC and PWM analog dimming
- short-circuit and overvoltage protection
- small size
- "W" version with led out wires
- working temperature -40 ~ + 70oC
- cooling in open air circulation
- closed plastic housing in accordance with UL 94V-0
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 14,90 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-65-700DC/DC LED driver 9.5~32V/ 12.5~80V 0.7AOut of stock Warranty: 14,90 €18,33 €Login to check your price LDH-65-700DC/DC LED driver 9.5~32V/ 12.5~80V 0.7AAvailability: Out of stockNet price:14,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-65-1050DC/DC LED driver 9.5~32V/ 12.5~60V 1.05AOut of stock Warranty: 14,90 €18,33 €Login to check your price LDH-65-1050DC/DC LED driver 9.5~32V/ 12.5~60V 1.05AAvailability: Out of stockNet price:14,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-65-1400DC/DC LED driver 9.5~32V/ 12.5~46V 1.4AOut of stock Warranty: 14,90 €18,33 €Login to check your price LDH-65-1400DC/DC LED driver 9.5~32V/ 12.5~46V 1.4AAvailability: Out of stockNet price:14,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-65-1750DC/DC LED driver 9.5~32V/ 12.5~37V 1.75AOut of stock Warranty: 14,90 €18,33 €Login to check your price LDH-65-1750DC/DC LED driver 9.5~32V/ 12.5~37V 1.75AAvailability: Out of stockNet price:14,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-65-700WDC/DC LED driver 9.5~32V/ 12.5~80V 0.7AOut of stock Warranty: 14,90 €18,33 €Login to check your price LDH-65-700WDC/DC LED driver 9.5~32V/ 12.5~80V 0.7AAvailability: Out of stockNet price:14,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-65-1050WDC/DC LED driver 9.5~32V/ 12.5~60V 1.05AOut of stock Warranty: 14,90 €18,33 €Login to check your price LDH-65-1050WDC/DC LED driver 9.5~32V/ 12.5~60V 1.05AAvailability: Out of stockNet price:14,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-65-1400WDC/DC LED driver 9.5~32V/ 12.5~46V 1.4AOut of stock Warranty: 14,90 €18,33 €Login to check your price LDH-65-1400WDC/DC LED driver 9.5~32V/ 12.5~46V 1.4AAvailability: Out of stockNet price:14,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-65-1750WDC/DC LED driver 9.5~32V/ 12.5~37V 1.75AOut of stock Warranty: 14,90 €18,33 €Login to check your price LDH-65-1750WDC/DC LED driver 9.5~32V/ 12.5~37V 1.75AAvailability: Out of stockNet price:14,90 €
Description
LDH series DC / DC controllers are intended for use in LED lighting, mainly to supply LEDs with a constant current. They are characterized by stable output parameters and high efficiency. Two versions are available, for PCB or with leads out. The devices can be dimmed using two methods: 0-10VDC signal or PWM signal. The controllers can be used, for example, in street lighting fittings, high-bay fittings, greenhouse fittings, and portable LED floodlights.
Technical Specification
- LDH-65: LED DC / DC current driver 21~25W SPECIFICATION
| Model | Input | Output | Tolerance | Efficiency | Dimensions |
| LDH-65-700 | 9.5~32VDC | 12~80VDC, 700mA | +/-5 | 91% | 75x53x22.7mm |
| LDH-65-1050 | 9.5~32VDC | 12~60VDC, 1050mA | +/-5 | 91% | 75x53x22.7mm |
| LDH-65-1400 | 9.5~32VDC | 12~46VDC, 1400mA | +/-5 | 92% | 75x53x22.7mm |
| LDH-65-1750 | 9.5~32VDC | 12~37VDC, 1750mA | +/-5 | 92% | 75x53x22.7mm |
