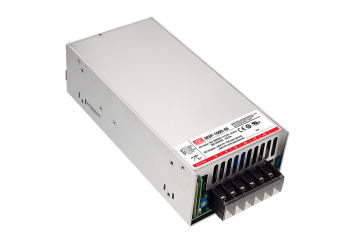

MSP-1000
Enclosed medical power supply
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 94%
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage /
- Over temperature
- Medical safety approved (2 MOPP)×
- Suitable for BF application with appropriate system
- consideration
- Built-in cooling fan ON-OFF control
- Current sharing up to 4000W (3+1)
- Built-in DC OK signal
- Built-in remote ON-OFF control
- Standby 5V@0.3A
- Built-in remote sense function
- No load power consumption<0.75W
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Висока цена? Влезте в профила си и купете на по-ниска
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
MSP-1000
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиMSP-1000-12medical switching power supply 960W 12V 80AИзчерпан Гаранционен срок: 207,40 €255,10 €Влезте, за да проверите цената си MSP-1000-12medical switching power supply 960W 12V 80AНаличност: ИзчерпанНетна цена:207,40 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиMSP-1000-15medical switching power supply 960W 15V 64AИзчерпан Гаранционен срок: 207,40 €255,10 €Влезте, за да проверите цената си MSP-1000-15medical switching power supply 960W 15V 64AНаличност: ИзчерпанНетна цена:207,40 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиMSP-1000-24medical switching power supply 1008W 24V 42AИзчерпан Гаранционен срок: 207,40 €255,10 €Влезте, за да проверите цената си MSP-1000-24medical switching power supply 1008W 24V 42AНаличност: ИзчерпанНетна цена:207,40 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиMSP-1000-48medical switching power supply 1008W 48V 21AИзчерпан Гаранционен срок: 207,40 €255,10 €Влезте, за да проверите цената си MSP-1000-48medical switching power supply 1008W 48V 21AНаличност: ИзчерпанНетна цена:207,40 €
Описание
MSP-1000 is a single output enclosed type AC/DC power supply delivering 1000W output power fo r a wide range of medical applications. The entire series operates for 90~264 VAC input voltage and supplies different output voltages between 12V and 48V that can satisfy the demands for all kinds of medical equipments. Meanwhile, the circuitry design meets the international medical standards, 2x MOPP, suitable for medical electrical devices. MSP-1000 is equipped with various built-in functions such as auxiliary power, remote sense and remote on-off control, offering vast design flexibility for the purpose of using control solutions.
Техническа спецификация
- MSP-1000: Enclosed medical power supply 960~1008W (specification)
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| MSP-1000-12 | 12V, 0~80A | +/-2% | 150mV | 91,5% | 218x105x63.5mm |
| MSP-1000-15 | 15V, 0~64A | +/-1.5% | 150mV | 92% | 218x105x63.5mm |
| MSP-1000-24 | 24V, 0~42A | +/-1% | 200mV | 93% | 218x105x63.5mm |
| MSP-1000-48 | 48V, 0~21A | +/-1% | 250mV | 94% | 218x105x63.5mm |
