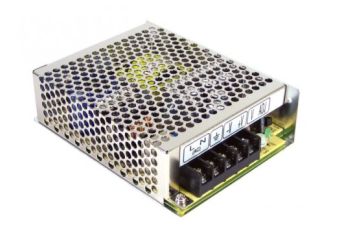

RID-65
Enclosed 2-output power supply - insulated channels: RID-65A, RID-65B
- input voltage 88-264VAC, 124-370VDC
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 21,60 € нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRID-65Aswitching power supply 65W 5V 8A, 12V 4AИзчерпан Гаранционен срок: 21,60 €26,57 €Влезте, за да проверите цената си RID-65Aswitching power supply 65W 5V 8A, 12V 4AНаличност: ИзчерпанНетна цена:21,60 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRID-65Bswitching power supply 65W 5V 8A, 24V 3AИзчерпан Гаранционен срок: 21,60 €26,57 €Влезте, за да проверите цената си RID-65Bswitching power supply 65W 5V 8A, 24V 3AНаличност: ИзчерпанНетна цена:21,60 €
Описание
MEAN WELL RID-65 has two galvanically separated outputs with voltages of 5.12 or 5.24 VDC. The output power is 65 W and additional brackets allow mounting on a DIN rail.
Техническа спецификация
- RID-65: Enclosed 2-output power supply 66~68W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| RID-65A | 5V, 0.3~8.0A 12V, 0.2~4.0A |
+/-2% +/-8% |
80mV 120mV |
81% | 66W | 129x98x38mm |
| RID-65B | 5V, 0.3~8.0A 24V, 0.2~3.0A |
+/-2% +/-10% |
80mV 150mV |
82% | 68W | 129x98x38mm |
