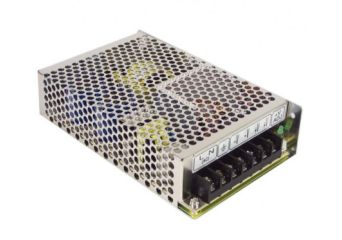

RID-85
Enclosed 2-output power supply - insulated channels: RID-85A, RID-85B
Производител: MEAN WELL
Производител: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -25 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от €29,80 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRID-85Aswitching power supply 85W 5V 10A, 12V 5AИзчерпан Гаранционен срок: €29,80€36,65Влезте, за да проверите цената си RID-85Aswitching power supply 85W 5V 10A, 12V 5AНаличност: ИзчерпанНетна цена:€29,80 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRID-85Bswitching power supply 85W 5V 10A, 24V 2.5AИзчерпан Гаранционен срок: €29,80€36,65Влезте, за да проверите цената си RID-85Bswitching power supply 85W 5V 10A, 24V 2.5AНаличност: ИзчерпанНетна цена:€29,80
Описание
RID-85 are power supplies with a power of 85 W and two separated outputs - with a voltage of 5/12 or 5/24 VDC. They are also characterized by a wide operating temperature range and a resistant metal housing.
Техническа спецификация
- RID-85: Enclosed 2-output power supply 88W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| RID-85A | 5V, 2.0~10A 12V, 0.3~5.0A |
+/-2% +/-5% |
80mV 120mV |
80% | 88W | 159x97x38mm |
| RID-85B | 5V, 2.0~10A 24V, 0.3~2.5A |
+/-2% +/-5% |
80mV 120mV |
81% | 88W | 159x97x38mm |
