Производител: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 19,40 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRT-65Aswitching power supply 65W 5V, 12V, -5VOut of stock Warranty: 19,40 €23,86 €Login to check your price RT-65Aswitching power supply 65W 5V, 12V, -5VAvailability: Out of stockNet price:19,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRT-65Bswitching power supply 65W 5V, 12V, -12VIn delivery Warranty: 19,40 €23,86 €Login to check your price RT-65Bswitching power supply 65W 5V, 12V, -12VAvailability: In deliveryNet price:19,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRT-65Cswitching power supply 65W 5V, 15V, -15VOut of stock Warranty: 19,40 €23,86 €Login to check your price RT-65Cswitching power supply 65W 5V, 15V, -15VAvailability: Out of stockNet price:19,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRT-65Dswitching power supply 65W 5V, 24V, 12VIn stockWarranty: 19,40 €23,86 €Login to check your price RT-65Dswitching power supply 65W 5V, 24V, 12VAvailability:In stockNet price:19,40 €
Description

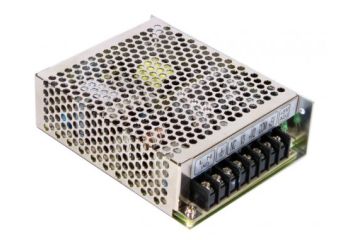

MEAN WELL RT-65 has 3 outputs with different voltages, so it can be used in non-standard telecommunications and industrial applications.
Technical Specification
- RT-65: Enclosed 3-output power supply 65~68W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| RT-65A | 5V, 0.5~8.0A 12V, 0.2~3.5A -5V, 0~1.0A |
+/-2% +/-6% +/-5% |
80mV 120mV 80mV |
77% | 66.1W | 129x98x38mm |
| RT-65B | 5V, 0.5~8.0A 12V, 0.2~3.5A -12V, 0~1.0A |
+/-2% +/-6% +/-5% |
80mV 120mV 80mV |
77% | 64.6W | 129x98x38mm |
| RT-65C | 5V, 0.5~8.0A 15V, 0.2~3.0A -15V, 0~1.0A |
+/-2% +8%,-4% +/-5% |
80mV 120mV 80mV |
78% | 65.5W | 129x98x38mm |
| RT-65D | 5V, 0.5~8.0A 24V, 0.2~2.0A 12V, 0.1~1.0A |
+/-2% +4%,-6% +/-2% |
80mV 150mV 120mV |
79% | 68W | 129x98x38mm |
