Производител: MEAN WELL
- input voltage 88-264VAC
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 26,00 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRT-85Aswitching power supply 85W 5V, 12V, -5VOut of stock Warranty: 26,00 €31,98 €Login to check your price RT-85Aswitching power supply 85W 5V, 12V, -5VAvailability: Out of stockNet price:26,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRT-85Bswitching power supply 85W 5V, 12V, -12VIn stockWarranty: 26,00 €31,98 €Login to check your price RT-85Bswitching power supply 85W 5V, 12V, -12VAvailability:In stockNet price:26,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRT-85Cswitching power supply 85W 5V, 15V, -15VIn stockWarranty: 26,00 €31,98 €Login to check your price RT-85Cswitching power supply 85W 5V, 15V, -15VAvailability:In stockNet price:26,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRT-85Dswitching power supply 85W 5V, 24V, 12VOut of stock Warranty: 26,00 €31,98 €Login to check your price RT-85Dswitching power supply 85W 5V, 24V, 12VAvailability: Out of stockNet price:26,00 €
Description

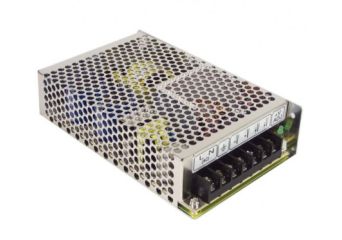

The RT-85 and the entire RT series have 3 voltage outputs, and its power is 85W.
Technical Specification
- RT-85: Enclosed 3-output power supply 85~90W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Diemensions |
| RT-85A | 5V, 2.0~10A 12V, 0.3~4.0A -5V, 0~1.0A |
+/-2% +/-5% +/-6% |
80mV 120mV 100mV |
76% | 84.5W | 159x97x38mm |
| RT-85B | 5V, 2.0~10A 12V, 0.3~4.0A -12V, 0~1.0A |
+/-2% +/-5% +/-6% |
80mV 120mV 120mV |
76% | 88W | 159x97x38mm |
| RT-85C | 5V, 2.0~10A 15V, 0.3~4.0A -15V, 0~1.0A |
+/-2% +3%,-7% +/-6% |
80mV 120mV 120mV |
77% | 87.5W | 159x97x38mm |
| RT-85D | 5V, 2.0~10A 24V, 0.3~2.5A 12V, 0.1~1.0A |
+/-2% +/-5% +/-6% |
80mV 150mV 120mV |
79% | 90W | 159x97x38mm |
