Производител: MEAN WELL
- input voltage 85-264VAC, 127-370VDC
- built-in active PFC function
- protections: short circuit, overvoltage and overload protection
- Thermal protection )
- cooling with a built-in fan
- the ability to adjust the output voltage in a small range
- working temperature -10 ~ + 60 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 104,50 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddQP-200Dswitching power supply 200W 5V,12V, 24V,-12VOut of stock Warranty: 104,50 €128,54 €Login to check your price QP-200Dswitching power supply 200W 5V,12V, 24V,-12VAvailability: Out of stockNet price:104,50 €
Description

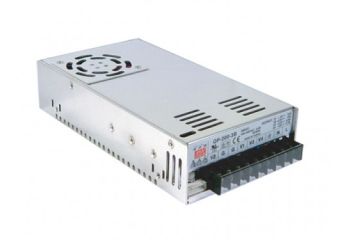

MEAN WELL QP-200 has 4 outputs and an output power of 200W. It is successfully used in applications with several supply voltages.
Technical Specification
- QP-200: Enclosed 4-output power supply 200~210W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| QP-200D | 5V, 3.0~20A 12V, 0.0~7.0A 24V, 0.4~6.0A -12V, 0.0~1.0A |
+/-3% +/-3% +10%,-6% +/-6% |
100mV 150mV 150mV 150mV |
75% | 203W | 215x115x50mm |
| QP-200F | 5V, 3.0~20A 15V, 0.0~6.0A 24V, 0.4~6.0A -15V, 0.0~1.0A |
+/-3% +/-3% +10%,-6% +/-6% |
100mV 150mV 150mV 150mV |
75% | 203W | 215x115x50mm |
| QP-200-3A | 5V, 3.0~20A 3.3V, 0.0~20A 12V, 0.5~8.0A -5V, 0.0~1.0A |
+/-3% +/-3% +8%,-10% +/-6% |
100mV 100mV 150mV 150mV |
72% | 200W | 215x115x50mm |
| QP-200-3B | 5V, 3.0~20A 3.3V, 0.0~20A 12V, 0.5~8.0A -12V, 0.0~1.0A |
+/-3% +/-3% +8%,-10% +/-6% |
100mV 100mV 150mV 150mV |
72% | 205W | 215x115x50mm |
| QP-200-3C | 5V, 3.0~20A 3.3V, 0.0~20A 15V, 0.5~7.0A -15V, 0.0~1.0A |
+/-3% +/-3% +10%,-6% +/-6% |
100mV 100mV 150mV 150mV |
72% | 210W | 215x115x50mm |
| QP-200-3D | 5V, 3.0~20A 3.3V, 0.0~20A 24V, 0.4~6.0A -12V, 0.0~1.0A |
+/-3% +/-3% +10%,-6% +/-6% |
100mV 100mV 150mV 150mV |
74% | 204W | 215x115x50mm |
| QP-200-3E | 5V, 3.0~20A 3.3V, 0.0~20A 24V, 0.4~6.0A -15V, 0.0~1.0A |
+/-3% +/-3% +10%,-6% +/-6% |
100mV 100mV 150mV 150mV |
74% | 206W | 215x115x50mm |
