Производител: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 19,50 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRQ-50Bswitching power supply 50W 5V, 12V,-5V,-12VIn stockWarranty: 19,50 €23,99 €Login to check your price RQ-50Bswitching power supply 50W 5V, 12V,-5V,-12VAvailability:In stockNet price:19,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRQ-50Cswitching power supply 50W 5V, 15V,-5V,-15VOut of stock Warranty: 19,50 €23,99 €Login to check your price RQ-50Cswitching power supply 50W 5V, 15V,-5V,-15VAvailability: Out of stockNet price:19,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRQ-50Dswitching power supply 50W 5V, 12V, 24V,-12VIn stockWarranty: 19,50 €23,99 €Login to check your price RQ-50Dswitching power supply 50W 5V, 12V, 24V,-12VAvailability:In stockNet price:19,50 €
Description

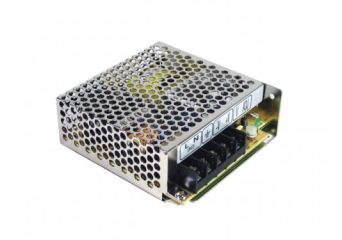

MEAN WELL RQ-50B power supplies with an output power of 50 W have as many as 4 output channels with both positive and negative voltage.
Technical Specification
- RQ-50: Enclosed 4-output power supply 46~53W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| RQ-50B | 5V, 0.5~6.0A 12V, 0.2~1.5A -5V, 0.0~1.0A -12V, 0.0~1.0A |
+/-2% +/-6% +/-2% +/-2% |
80mV 120mV 100mV 80mV |
74% | 46W | 99x97x36mm |
| RQ-50C | 5V, 0.5~6.0A 15V, 0.2~1.5A -5V, 0.0~1.0A -15V, 0.0~1.0A |
+/-2% +/-6% +/-2% +/-2% |
80mV 120mV 100mV 80mV |
75% | 50W | 99x97x36mm |
| RQ-50D | 5V, 0.5~5.0A 12V, 0.2~1.5A 24V, 0.1~1.0A -12V, 0.0~1.0A |
+/-6% +/-6% +7%,-5% +/-2% |
80mV 120mV 180mV 80mV |
79% | 53W | 99x97x36mm |
