Производител: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 29,80 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRQ-85Bswitching power supply 85W 5V, 12V,-5V,-12VOut of stock Warranty: 29,80 €36,65 €Login to check your price RQ-85Bswitching power supply 85W 5V, 12V,-5V,-12VAvailability: Out of stockNet price:29,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRQ-85Cswitching power supply 85W 5V, 15V,-5V,-15VOut of stock Warranty: 29,80 €36,65 €Login to check your price RQ-85Cswitching power supply 85W 5V, 15V,-5V,-15VAvailability: Out of stockNet price:29,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRQ-85Dswitching power supply 85W 5V, 12V, 24V,-12VOut of stock Warranty: 29,80 €36,65 €Login to check your price RQ-85Dswitching power supply 85W 5V, 12V, 24V,-12VAvailability: Out of stockNet price:29,80 €
Description

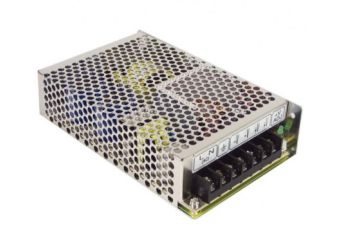

RQ-85 power supply with a power of 85W is equipped with 4 output channels with voltages (depending on the model): 5,12,15,24, -5, -12 VDC.
Technical Specification
- RQ-85: Enclosed 4-output power supply 81~84W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| RQ-85B | 5V, 2.0~10A 12V, 0.3~4.0A -5V, 0.0~1.0A -12V, 0.0~1.0A |
+/-2% +7%,-3% +/-8% +/-5% |
80mV 120mV 100mV 80mV |
76% | 81W | 159x97x38mm |
| RQ-85C | 5V, 2.0~10A 15V, 0.3~4.0A -5V, 0.0~1.0A -15V, 0.0~1.0A |
+/-2% +3%, -7% +/-8% +/-5% |
80mV 120mV 100mV 80mV |
77% | 83W | 159x97x38mm |
| RQ-85D | 5V, 2.0~10A 12V, 0.3~4.0A 24V, 0.1~1.5A -12V, 0.0~1.0A |
+/-2% +7%,-3% +/-8% +/-5% |
80mV 120mV 150mV 80mV |
78% | 84W | 159x97x38mm |
