LRS-150
Enclosed power supply: LRS-150-12, LRS-150-15, LRS-150-24, LRS-150-36, LRS-150-48
- AC input range selectable by switch
- Withstand 300VAC surge input for 5 second
- No load power consumption<0.5W
- Miniature size and IU low profile
- High operating temperature up to 70ºC
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Compliance to IEC/EN 60335-1 (PD3) and lEC/EN61558-1, 2-16 for household appliances
- Operating altitude up to 5000 meters
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- LED indicator for power on
- Over voltage category III
- 100% full load burn-in test
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
LRS-150
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-150-12switching power supply 150W 12V 12.5AIn delivery Warranty: 17,80 €21,89 €Login to check your price LRS-150-12switching power supply 150W 12V 12.5AAvailability: In deliveryNet price:17,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-150-15switching power supply 150W 15V 10AIn stockWarranty: 17,80 €21,89 €Login to check your price LRS-150-15switching power supply 150W 15V 10AAvailability:In stockNet price:17,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-150-24switching power supply 150W 24V 6.5AIn stockWarranty: 16,60 €20,42 €Login to check your price LRS-150-24switching power supply 150W 24V 6.5AAvailability:In stockNet price:16,60 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-150-36switching power supply 150W 36V 4.3AIn stockWarranty: 17,80 €21,89 €Login to check your price LRS-150-36switching power supply 150W 36V 4.3AAvailability:In stockNet price:17,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-150-48switching power supply 150W 48V 3.3AIn stockWarranty: 17,80 €21,89 €Login to check your price LRS-150-48switching power supply 150W 48V 3.3AAvailability:In stockNet price:17,80 €
Description

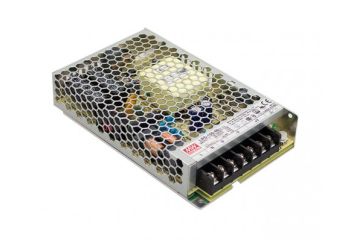

LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (selectable by switch), the entire series provides an output voltage line of 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150 that the whole series operates from -30ºC through 70ºC under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily meet the worldwide energy requirement. LRS-150 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV EN62368-1, EN60335-1, EN61558-1/-2-16, UL62368-1 and GB4943. LRS-150 series serves as a high price-to-performance power supply solution for various industrial applications.
Available models:
- 12V: LRS-150-12
- 15V: LRS-150-15
- 24V: LRS-150-24
- 36V: LRS-150-36
- 48V: LRS-150-48
Technical Specification
LRS-150: 150-158.4W DETAILS
| Model | Wyjście | Tolerancja | Zakłócenia | Wydajność | Wymiary |
| LRS-150-12 | 12V, 0~12.5A | +/-1% | 150mV | 87.5% | 159x97x30mm |
| LRS-150-15 | 15V, 0~10A | +/-1% | 150mV | 89% | 159x97x30mm |
| LRS-150-24 | 24V, 0~6.5A | +/-1% | 200mV | 89% | 159x97x30mm |
| LRS-150-36 | 36V, 0~4.3A | +/-1% | 200mV | 89% | 159x97x30mm |
| LRS-150-48 | 48V, 0~3.3A | +/-1% | 200mV | 90% | 159x97x30mm |
