LRS-150F
Enclosed power supply: LRS-150F-5, LRS-150F-12, LRS-150F-15, LRS-150F-24, LRS-150F-36, LRS-150F-48
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 second
- No load power consumption<0.5W
- Miniature size and 1U low profile
- High operating temperature up to 70ºC
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Compliance to IEC/EN 60335-1 (PD3) and lEC/EN61558-1, 2-16 for household appliances
- Operating altitude up to 5000 meters
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- LED indicator for power on
- Over voltage category III
- 100% full load burn-in test
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
LRS-150F
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-150F-5switching power supply 150W 5V 22AIn stockWarranty: 20,90 €25,71 €Login to check your price LRS-150F-5switching power supply 150W 5V 22AAvailability:In stockNet price:20,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-150F-12switching power supply 150W 12V 12.5AIn stockWarranty: 19,70 €24,23 €Login to check your price LRS-150F-12switching power supply 150W 12V 12.5AAvailability:In stockNet price:19,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-150F-15switching power supply 150W 15V 10AOut of stock Warranty: 19,70 €24,23 €Login to check your price LRS-150F-15switching power supply 150W 15V 10AAvailability: Out of stockNet price:19,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-150F-24switching power supply 150W 24V 6.5AIn stockWarranty: 18,70 €23,00 €Login to check your price LRS-150F-24switching power supply 150W 24V 6.5AAvailability:In stockNet price:18,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-150F-36switching power supply 150W 36V 4.3AIn stockWarranty: 19,70 €24,23 €Login to check your price LRS-150F-36switching power supply 150W 36V 4.3AAvailability:In stockNet price:19,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-150F-48switching power supply 150W 48V 3.3AOut of stock Warranty: 19,70 €24,23 €Login to check your price LRS-150F-48switching power supply 150W 48V 3.3AAvailability: Out of stockNet price:19,70 €
Description

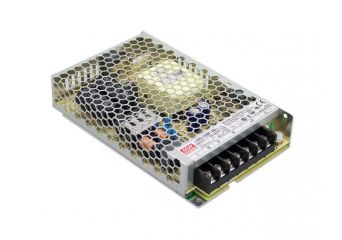

LRS-150F series is a 150W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V,
24V, 36V and 48V.
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150F that the whole series operates from -30ºC through 70ºC under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W), ił allows the end system to easily meet the worldwide energy requirement. LRS-150F has the complete protection functions and 5G anti-vibration capability; ił is complied with the international safety regulations such as TUV EN62368-1, EN60335-1, EN61558-1/-2-16, UL62368-1 and GB4943. LRS-150F series serves as a high price-to-performance power supply solution for various industrial applications.
Available models:
- 5V: LRS-150F-5
- 12V: LRS-150F-12
- 15V: LRS-150F-15
- 24V: LRS-150F-24
- 36V: LRS-150F-36
- 48V: LRS-150F-48
Technical Specification
LRS-150F: 110-158.4W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| LRS-150F-5 | 5V, 0~26A | +/-2% | 100mV | 85% | 159x97x30mm |
| LRS-150F-12 | 12V, 0~12.5A | +/-1% | 150mV | 87.5% | 159x97x30mm |
| LRS-150F-15 | 15V, 0~10A | +/-1% | 150mV | 89% | 159x97x30mm |
| LRS-150F-24 | 24V, 0~6.5A | +/-1% | 200mV | 89% | 159x97x30mm |
| LRS-150F-36 | 36V, 0~4.3A | +/-1% | 200mV | 89% | 159x97x30mm |
| LRS-150F-48 | 48V, 0~3.3A | +/-1% | 200mV | 90% | 159x97x30mm |
