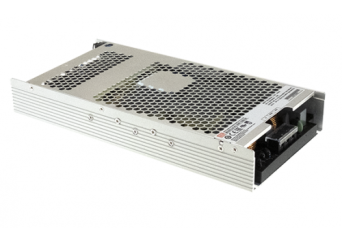

UHP-1500

U-bracket enclosed power supply: UHP-1500-24, UHP-1500-48

  • Slim and Low profile (41 mm)
  • Fanless and conduction-cooled design
  • Built-in active PFC function
  • -30~+70°C working temperature
  • Output voltage and constant current level programmable
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in remote ON-OFF control
  • DC OK active signal
  • Operating altitude up to 5000 meter (Note.7)
  • LED indicator for power on
  • Optional PMBus or CANBus protocol
Цена от €358.20 нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Наличен на склад

Поръчайте до 12:00 и ще бъде изпратен в рамките на деня

Безплатна доставка от €100

Вижте 4 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
zasilacz do zabudowy UHP-1500

UHP-1500

Модели

Описание

UHP-1500 series is a 1500W single-output slim type power supply with 41mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 24V and 48V. In addition to the high efficiency up to 96%, that the whole series operates from -30°C ~70°C under air convection without fan. UHP-1500 has the complete protection functions and 5G anti-vibration capability; It is complied with the international safety regulations such as TUV EN62368-1, UL62368-1 and design refers to EN61558-1 and EN60335-1. UHP-1500 series serves as a high performance power supply solution for various industrial applications.

Avaialble models:

  • 24V: UHP-1500-24
  • 48V: UHP-1500-48

Техническа спецификация

UHP-1500: 1500-1512W DETAILS

Model Output Tolerance Ripple & noise Efficiency Dimension
UHP-1500-24 24V, 0~62.5A +/-1% 240mV 95% 290x140x41mm
UHP-1500-48 48V, 0~31.5A +/-1% 350mV 96% 290x140x41mm
