VFD-150P-48
Variable Frequency Drive 150W
- Compact dimensions
- Input voltage range 20~55Vdc
- Control using an external controller
- Cooling with open air circulation
- Possibility of 5-second overload up to 200% power
- Built-in temperature and input voltage sensor
- Permissible operating temperature range -30~70°C
- 3 years warranty
Цена от 17,10 € нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
VFD-150P-48
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиVFD-150P-48variable frequency drive 150W 20~55VDC/0~34VИзчерпан Гаранционен срок: 17,10 €21,03 €Влезте, за да проверите цената си VFD-150P-48variable frequency drive 150W 20~55VDC/0~34VНаличност: ИзчерпанНетна цена:17,10 €
Описание

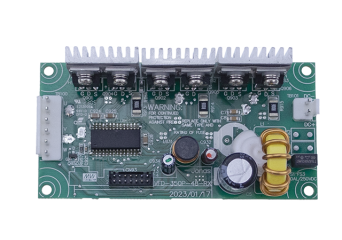

VFD-150P-48 is an inverter module designed to control an external PWM controller. The input voltage range is 20~55VDC. Thanks to its high performance, compact design without a housing and convection cooling, the module is perfect for installation inside an end device. VFD-150P-48 is dedicated to driving BLDC and induction motors and SynRM solutions.
Техническа спецификация
- VFD-150P-48: SPECIFICATION
| Model | Input | Output | Output freq. | Efficiency | Dimensions |
| VFD-150P-48 | 20~55VDC | 0~34V, 4.3A | 2.5kHz~15kHz | 93% | 101.6x50.8x28.6mm |
