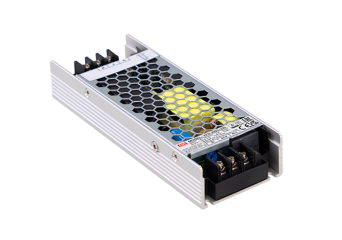

VFD-200C-230
Variable Frequency Drive with PFC function
- Variable Frequency Drive
- Input voltage range 90~264VAC
- Built-in PFC function
- Control using an external controller
- Cooling with open air circulation
- Possibility of 5-second overload up to 200% power
- Short-circuit and overcurrent protection
- Built-in temperature and input voltage sensor
- Permissible operating temperature range -30~70°C
- 3 years warranty
Цена от 38,90 € нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
VFD-200C-230
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиVFD-200C-230variable frequency drive 200W 90~264VAC/0~240VИзчерпан Гаранционен срок: 38,90 €47,85 €Влезте, за да проверите цената си VFD-200C-230variable frequency drive 200W 90~264VAC/0~240VНаличност: ИзчерпанНетна цена:38,90 €
Описание
VFD-200C-230 is an Variable Frequency Drive module designed to control an external PWM controller. The input voltage range is 90~264VAC and the output voltage range is 0~240V. Thanks to its high efficiency, compact design and convection cooling, the module is perfect for installation inside the end device. The device has the ability to overload for 5 seconds to 200% of the rated power. VFD-200C-230 is dedicated to driving BLDC and induction motors and SynRM solutions.
Техническа спецификация
- VFD-200C-230: SPECIFICATION
| Model | Input | Output | Output freq. | Efficiency | Dimensions |
| VFD-200C-230 | 90~264VAC | 0~240V, 0.8A | 2.5kHz~15kHz | 92% | 146x55x26mm |
