Производител: MEAN WELL
- Compact dimensions
- Input voltage range 20~55VDC
- Control using an external controller
- Cooling with open air circulation
- Possibility of 5-second overload up to 200% power
- Short-circuit and overcurrent protection
- Built-in temperature and input voltage sensor
- Permissible operating temperature range -30~70°C
- 3 years warranty
Цена от €19,70 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
VFD-250P-48
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиVFD-250P-48variable frequency drive 250W 20~55VDC/0~34VИзчерпан Гаранционен срок: €19,70€24,23Влезте, за да проверите цената си VFD-250P-48variable frequency drive 250W 20~55VDC/0~34VНаличност: ИзчерпанНетна цена:€19,70
Описание

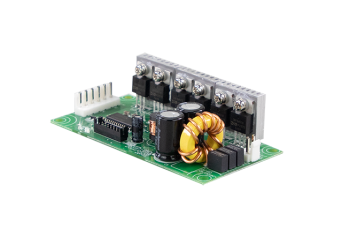

VFD-250P-48 is an inverter module designed to control an external PWM controller. The input voltage range is 20~55VDC and the output voltage is 0~34V. Thanks to its high efficiency, compact design and convection cooling, the module is perfect for installation inside the end device. The device has the ability to overload for 5 seconds to 200% of the rated power. VFD-250P-48 is dedicated to driving BLDC and induction motors and SynRM solutions.
Техническа спецификация
- VFD-250P-48: SPECIFICATION
| Model | Input | Output | Output freq. | Efficiency | Dimensions |
| VFD-250P-48 | 20~55VDC | 0~34V, 7.2A | 2.5kHz~15kHz | 93% | 101.6x50.8x28.6mm |
