HEP-600C

Industrial battery charger - harsh enviroment: HEP-600C-12, HEP-600C-24, HEP-600C-48

  • Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
  • 3 stage charging
  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • No load power consumption <0.5W at remote OFF
  • High efficiency up to 95.5%
  • Fanless design, cooling by free air convection
  • Aluminum case and filling with heat-conducted glue
  • Withstand 10G vibration test
  • -40 ~+70°C wide operating range
  • Output voltage and output current can be adjusted through internal potentiometer
  • Protection: Short circuit / Over voltage / Over temperature
  • 3 color LED loading indicator
  • Operating altitude up to 5000 meters (Note.5)
Цена от 219,40 € нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Наличен на склад

Поръчайте до 12:00 и ще бъде изпратен в рамките на деня

Безплатна доставка от €100

Вижте 3 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

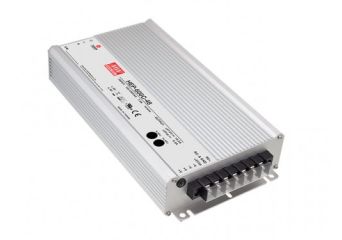

Ładowarka akumulatorowa HEP-600C-48 MEAN WELL

HEP-600C

Модели

Описание

HEP-6000 series is an AC-to-DC battery charger providing up to 600W, designed with aluminum case and fully potted by silicone. It features the high efficiency (up to 95.5%), waterproof and low no-load power consumption (<0.5W) at remote OFF. Incorporating state of the art design, the fan-less HEP-600C is capable of working under high-vibration (10G), dusty, humid, and oily environment. Other features include adjustable voltage/current and wide working temperature range (-40~+70°C).

Available models:

  • 14.4V: HEP-600C-12
  • 28.8V: HEP-600C-24
  • 57.6V: HEP-600C-48

Техническа спецификация

HEP-600C: 504-604 W DETAILS

Model Output Efficiency Dimension
HEP-600C-12 14.4V, 0~35A 93.5% 280x144x48.5mm
HEP-600C-24 28.8V, 0~21A 94.5% 280x144x48.5mm
HEP-600C-48 57.6V, 0~10.5A 95.5% 280x144x48.5mm
