HEP-480
Fanless power supply for harsh environmental conditions
-
- supply voltage: 90-264VAC; 127-370VDC
- built-in active PFC function
- short-circuit, overload, overvoltage and thermal protection
- regulation of output voltage and current with a potentiometer
- aluminum housing filled with thermally conductive adhesive
- cooling with open air circulation
- vibration resistance up to 10G
- working temperature -55 ~ + 65 ° C
- efficiency up to 95%
- compliance with a number of standards and certificates
- available models with IP65 and IP68 (option)
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Висока цена? Влезте в профила си и купете на по-ниска
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употребаМодели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиHEP-480-24Aswitching power supply 480W 24V 20AИзчерпан Гаранционен срок: 174,80 €215,00 €Влезте, за да проверите цената си HEP-480-24Aswitching power supply 480W 24V 20AНаличност: ИзчерпанНетна цена:174,80 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиHEP-480-36Aswitching power supply 480W 36V 13.3AИзчерпан Гаранционен срок: 174,80 €215,00 €Влезте, за да проверите цената си HEP-480-36Aswitching power supply 480W 36V 13.3AНаличност: ИзчерпанНетна цена:174,80 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиHEP-480-48Aswitching power supply 480W 48V 10AИзчерпан Гаранционен срок: 174,80 €215,00 €Влезте, за да проверите цената си HEP-480-48Aswitching power supply 480W 48V 10AНаличност: ИзчерпанНетна цена:174,80 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиHEP-480-54Aswitching power supply 480W 54V 8.9AИзчерпан Гаранционен срок: 174,80 €215,00 €Влезте, за да проверите цената си HEP-480-54Aswitching power supply 480W 54V 8.9AНаличност: ИзчерпанНетна цена:174,80 €
Описание

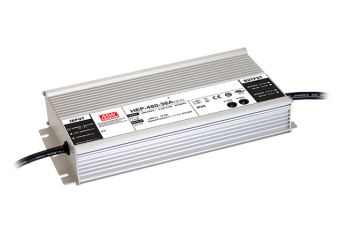

HEP-480 is a 480W industrial AC/DC power supply designed for use in challenging environments, including those with high humidity, dust, oil, and strong vibrations. The series features an aluminum casing and is fully potted with heat-conductive silicone, enhancing its durability and reliability. Thanks to its advanced design, the power supply operates at up to 95% efficiency and maintains functionality across a broad temperature range of -55°C to +65°C when under free air convection.
Техническа спецификация
- HEP-480 : Fanless power supply for harsh conditions 478.8-480.6W SPECIFICATION
Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
HEP-480-24A | 24V, 0~20A | +/-1% | 200mV | 94% | 300mm | 262x125x43.8mm |
HEP-480-36A | 36V, 0~13.3A | +/-1% | 250mV | 95% | 300mm | 262x125x43.8mm |
HEP-480-48A | 48V, 0~10A | +/-1% | 250mV | 94.5% | 300mm | 262x125x43.8mm |
HEP-480-54A | 54V, 0~8.9A | +/-1% | 350mV | 95% | 300mm | 262x125x43.8mm |
