RSP-1000
Enclosed high-power power supply: RSP-1000-12, RSP-1000-15, RSP-1000-24, RSP-1000-27, RSP-1000-48
- Universal AC input / Full range
- Built-in active PFC function
- High efficiency up to 90%
- Forced air cooling by built-in DC fan
- Output voltage programmable
- Active current sharing up to 4000W (3+1 )
- Built-in remote ON-OFF control / remote sense / auxiliary power / DC OK signal
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Optional conformal coating
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употребаRSP-1000
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRSP-1000-12switching power supply 720W 12V 60AИзчерпан Гаранционен срок: 241,60 €297,17 €Влезте, за да проверите цената си RSP-1000-12switching power supply 720W 12V 60AНаличност: ИзчерпанНетна цена:241,60 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRSP-1000-15switching power supply 750W 15V 50AИзчерпан Гаранционен срок: 241,60 €297,17 €Влезте, за да проверите цената си RSP-1000-15switching power supply 750W 15V 50AНаличност: ИзчерпанНетна цена:241,60 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRSP-1000-24switching power supply 1000W 24V 40AНаличен на складГаранционен срок: 241,60 €297,17 €Влезте, за да проверите цената си RSP-1000-24switching power supply 1000W 24V 40AНаличност:Наличен на складНетна цена:241,60 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRSP-1000-27switching power supply 1000W 27V 37AНаличен на складГаранционен срок: 241,60 €297,17 €Влезте, за да проверите цената си RSP-1000-27switching power supply 1000W 27V 37AНаличност:Наличен на складНетна цена:241,60 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRSP-1000-48switching power supply 1000W 48V 21AНаличен на складГаранционен срок: 241,60 €297,17 €Влезте, за да проверите цената си RSP-1000-48switching power supply 1000W 48V 21AНаличност:Наличен на складНетна цена:241,60 €
Описание

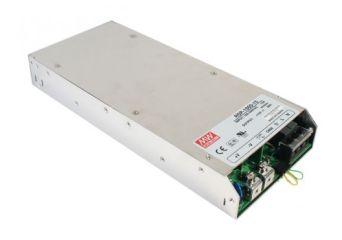

RSP-1000 is a 1KW single output enclosed type AC/DC power supply with 1U low profile. This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 60ºC. Moreover, RSP-1000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.
Available models:
- 12V: RSP-1000-12
- 15V: RSP-1000-15
- 24V: RSP-1000-24
- 27V: RSP-1000-27
- 48V: RSP-1000-48
Техническа спецификация
RSP-1000: 720-1008W DETAILS
Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
RSP-1000-12 | 12V, 0~60A | +/-1% | 150mV | 83% | 295x127x41mm |
RSP-1000-15 | 15V, 0~50A | +/-1% | 150mV | 85% | 295x127x41mm |
RSP-1000-24 | 24V, 0~40A | +/-1% | 150mV | 88% | 295x127x41mm |
RSP-1000-27 | 27V, 0~37A | +/-1% | 150mV | 88% | 295x127x41mm |
RSP-1000-48 | 48V, 0~21A | +/-1% | 150mV | 90% | 295x127x41mm |
