GE24
Interchangeable industrial adaptor
- wide input voltage range of 90-264VAC
- Replaceable AC plugs (not included, can be purchased separately)
- no-load power consumption <0.3W
- compliant with ErP 2 and EISA 2007
- protections: short circuit, overvoltage and overload protection
- class II insulation
- working temperature 0 ~ + 30 ° C (up to 50 ° C at 50% load)
- compliance with many standards and certificates
- fully enclosed plastic housing
- 2 years warranty
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употребаUseful products
Описание

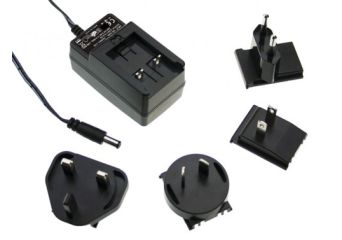

The MEAN WELL GE24 power supply has an output power of 24W and is available in several variants of output voltages. The main feature is the ability to change the input plug, thanks to which the power supply can work in many countries around the world.
Техническа спецификация
- GE24: seria zasilaczy 15~24W
- zobacz szczegóły
| Model | Wyjście | Tolerancja | Zakłócenia | Wydajność | Wtyk | Wymiary |
| GE24I05-P1J | 5V, 0~3A | +/-5% | 50mV | 76.5% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE24I07-P1J | 7.5V, 0~2A | +/-5% | 75mV | 79.5% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE24I09-P1J | 9V, 0~2.22A | +/-5% | 100mV | 81.5% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE24I12-P1J | 12V, 0~2A | +/-3% | 120mV | 82.5% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE24I15-P1J | 15V, 0~1.6A | +/-3% | 150mV | 84% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE24I18-P1J | 18V, 0~1.33A | +/-3% | 180mV | 84% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE24I24-P1J | 24V, 0~1A | +/-3% | 240mV | 85% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE24I48-P1J | 48V, 0~0.5A | +/-3% | 300mV | 85% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
