IOB-15

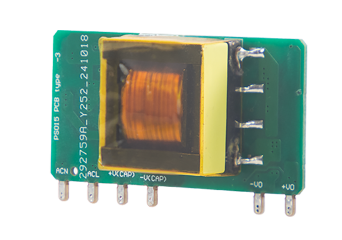

MEAN WELL 15W AC/DC Converter, Supply PCB power module
- Assemble on the main PCB of the system
- 1.75"x0.86"compact size
- 85~305Vac input (277Vac available)
- No load power consumption <0.25W
- -40~80 °C wide operating temperature
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Safety Class II
- 3 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
IOB-15
Описание
The IOB-15 series is a compact and reliable AC-DC open frame power module featuring high efficiency and low power consumption. It is particularly well-suited for space-constrained applications with stringent energy efficiency requirements. The product features a compact design and supports universal input voltage range of 85~305Vac. With ultra-low standby power consumption <0.25W, it is energy efficiency and eco-friendly. It also offers an ultra-wide operating temperature range of -40°C~+85°C as well as complete protection functions to ensure safe and reliable operation. These features make the product suitable for applications with strict space constraints, such as industrial automation, power metering, and smart devices. Additionally used in smart homes, industrial control and mechanical equipment.
Техническа спецификация
- IOB-15: 9.9~15W → Manufacturer documentation (specification, certificates, others)
| Model | Output | Ripple & noise | Efficiency | Dimension |
| IOB-15-03 | 3.3V, 0~3A | 150mV | 76% | 44.5x24x15mm |
| IOB-15-05 | 5V, 0~2.8A | 150mV | 77% | 44.5x24x15mm |
| IOB-15-09 | 9V, 0~1.67A | 150mV | 82% | 44.5x24x15mm |
| IOB-15-12 | 12V, 0~1.25A | 150mV | 82% | 44.5x24x15mm |
| IOB-15-15 | 15V, 0~1A | 150mV | 84% | 44.5x24x15mm |
| IOB-15-24 | 24V, 0~0.625A | 150mV | 85% | 44.5x24x15mm |
